JINK Smart Door Lock JR-24

JINK Smart Door Lock JR-24

$99.00 USD
$99.00 USD
跳至产品信息
JINK Smart Door Lock JR-24
  • JINK Smart Door Lock JR-24
  • JINK Smart Door Lock JR-24

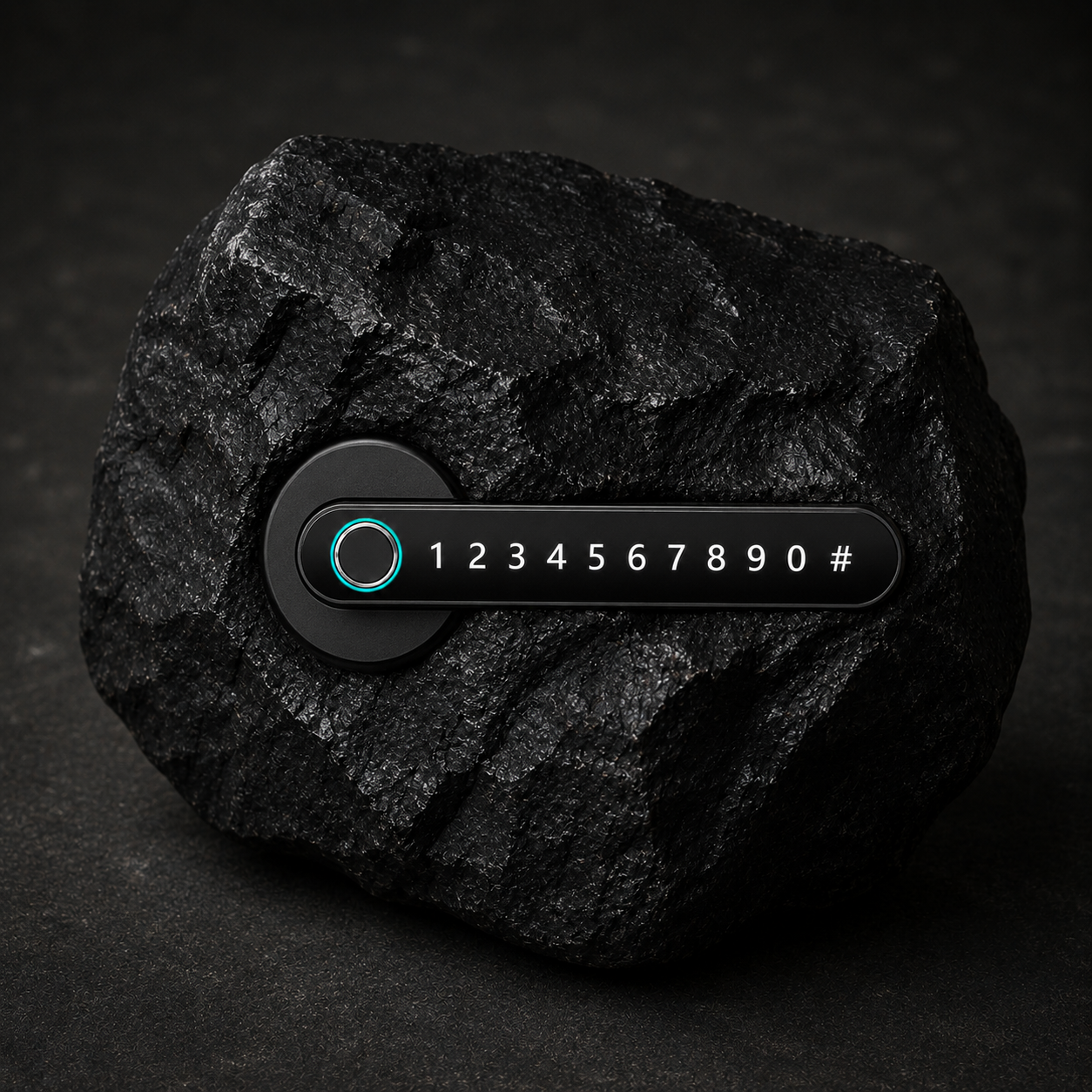

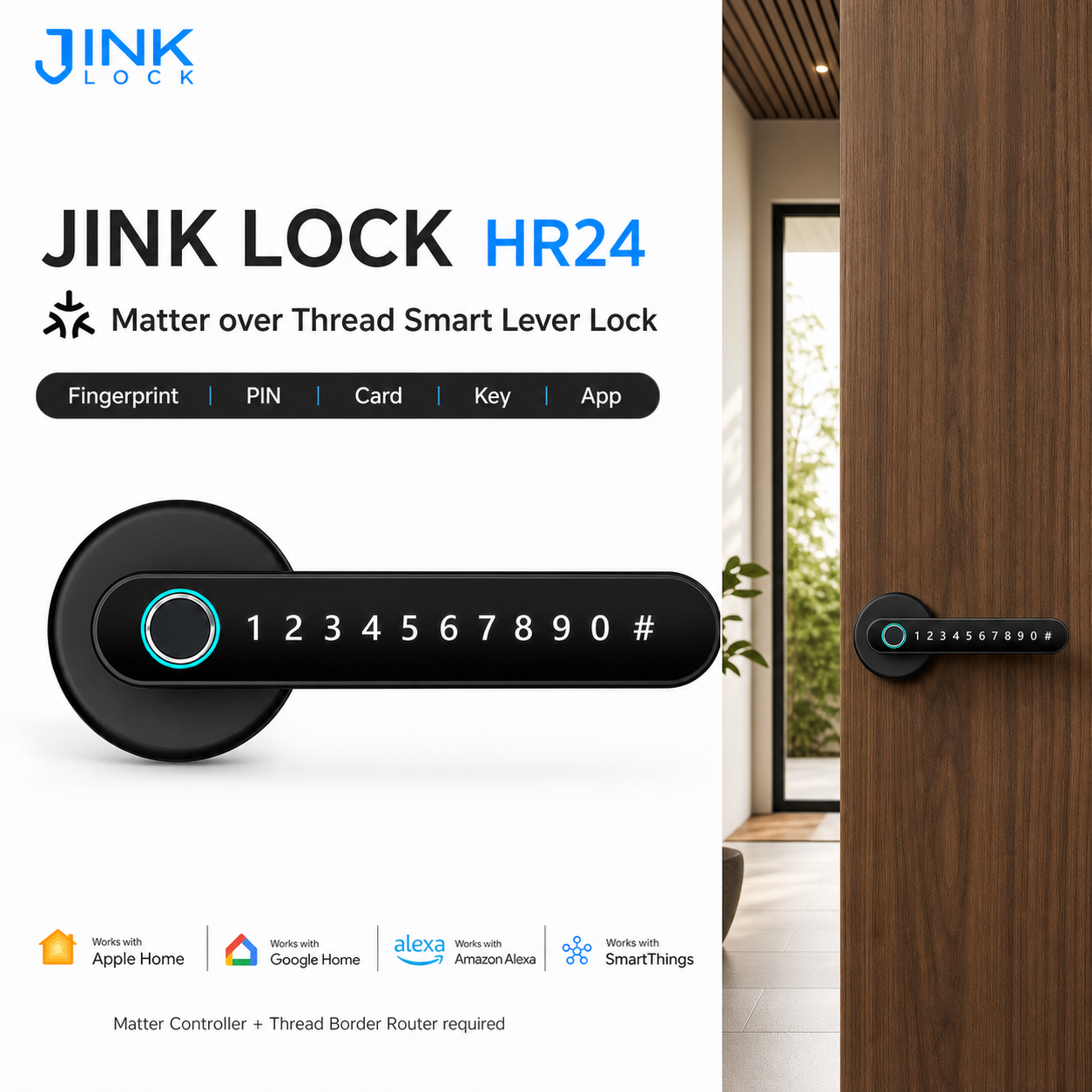

  • JINK Lock HR24 Matter over Thread smart lever lock
  • JINK Lock HR24 fingerprint entry scene

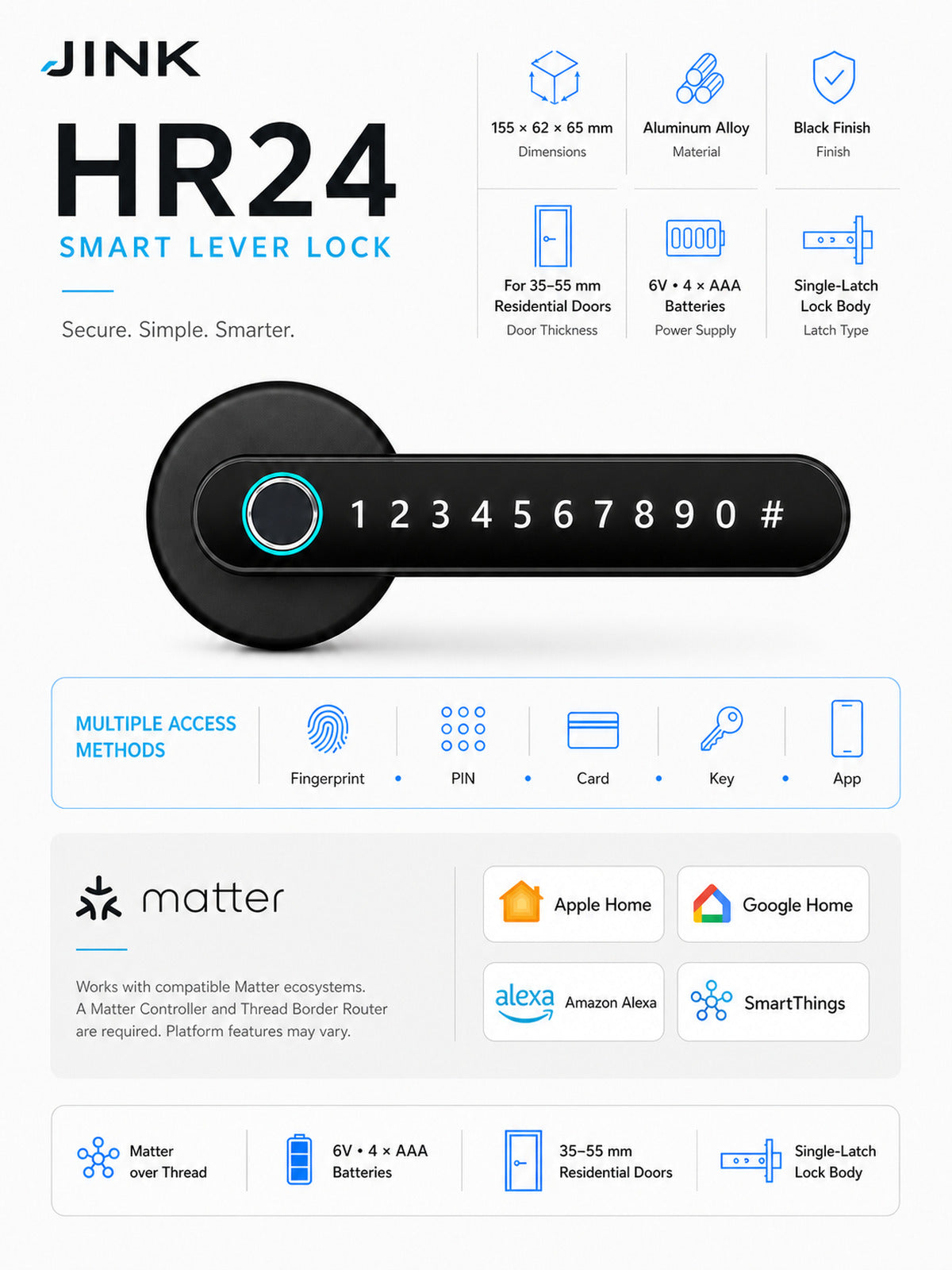

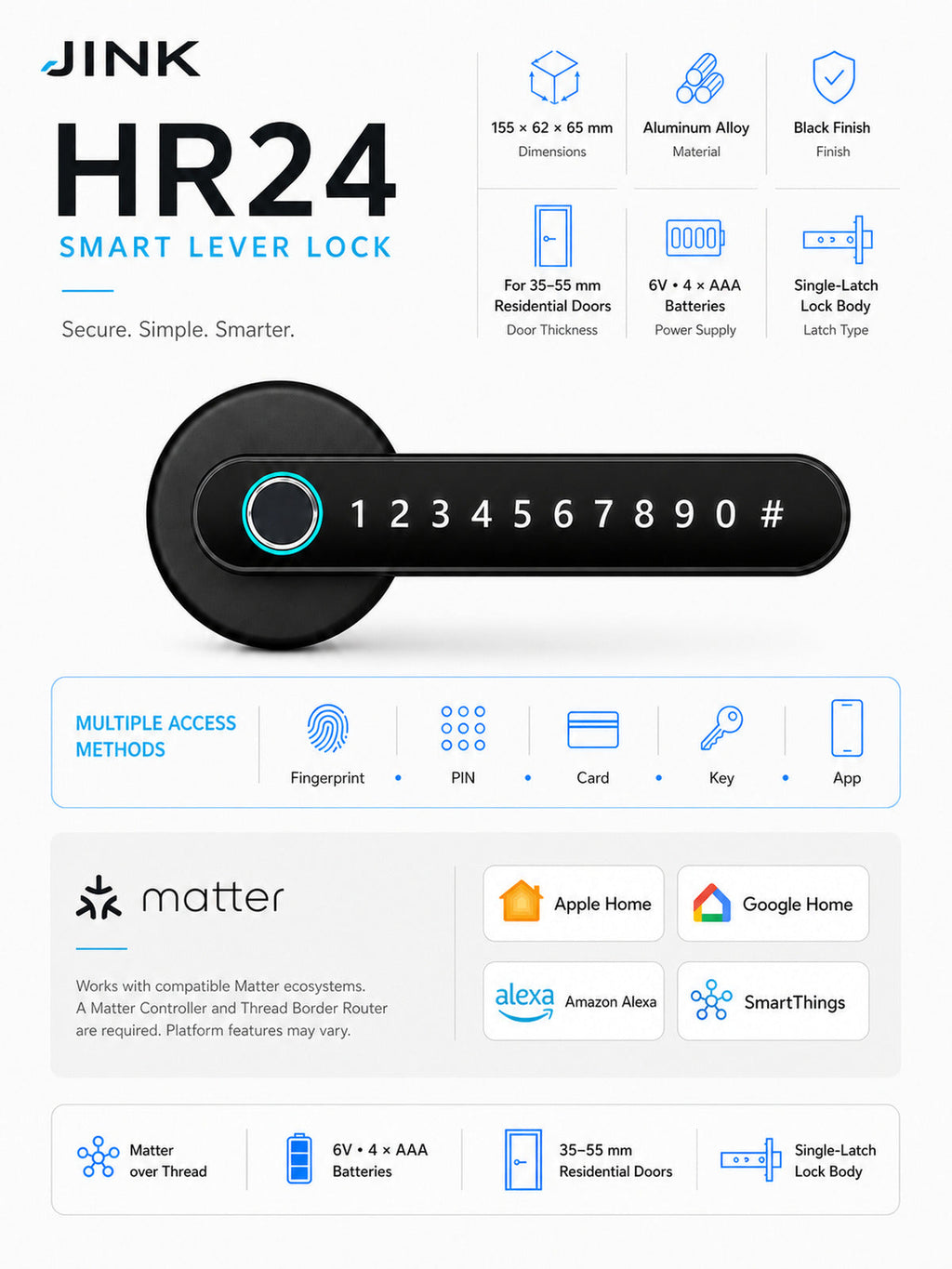

  • JINK Lock HR24 specifications and Matter ecosystems

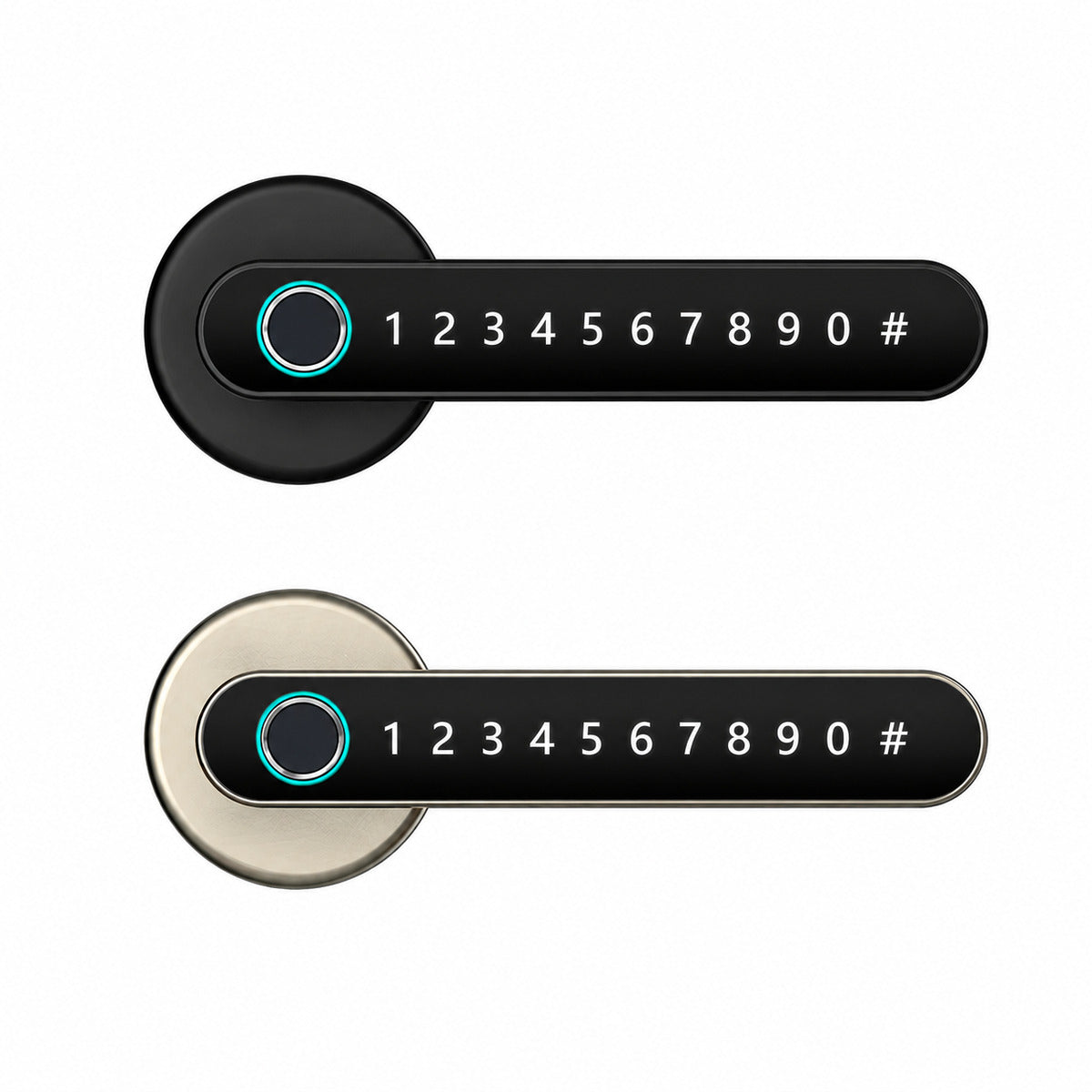

  • JINK Lock HR24 — standardized 1x1 media
  • JINK Lock HR24 — standardized 1x1 media
  • JINK Lock HR24 Matter over Thread smart lever lock — standardized 1x1 media
  • JINK Lock HR24 fingerprint entry scene — standardized 3x4 media
  • JINK Lock HR24 specifications and Matter ecosystems — standardized 3x4 media
  • JINK Lock HR24 — product hero
  • JINK JR-24 — Come home. In your own rhythm., The essentials. Clearly considered., The form. In closer detail., Know the dimensions., Power. Matched to the lock., The right lock. For the right door., Connected. To the home you know., Choose a familiar platform., Product specifications
JINK Smart Door Lock JR-24

JINK Smart Door Lock JR-24

$99.00 USD
$99.00 USD

JINK Smart Door Lock JR-24 — product details

JINK JR-24 — Come home. In your own rhythm., The essentials. Clearly considered., The form. In closer detail., Know the dimensions., Power. Matched to the lock., The right lock. For the right door., Connected. To the home you know., Choose a familiar platform., Product specifications

Product specifications

Product dimensions 155 × 62 × 65 mm
Material Aluminum alloy
Finish Black
Recommended door Residential door
Compatible door thickness 35–55 mm
Power 6 V (4 × AAA batteries)
Smart protocol Matter over Thread; a compatible Thread Border Router and Matter Controller are required
Retail box (L × W × H) 22 × 17.5 × 7.5 cm
Master carton (L × W × H) 40 × 36 × 45 cm
Packaged weight per unit 1.0 kg
Units per master carton 20
Gross master-carton weight 20 kg
Body type Single-latch lock body

Before installation

Door thickness, handing, frame clearance, backset and existing cut-outs determine the installation. Share door photos and lock-body dimensions with JINK to confirm the matching configuration.

Matter over Thread

Use a compatible Matter Controller and Thread Border Router. Available controls depend on the selected platform, firmware and lock configuration. The platform links below are official introductions; they do not imply support for every platform feature.

Matter · Apple Home · Google Home · Amazon Alexa · Samsung SmartThings

Downloads and support

English long image

For fitting and setup support, contact JINK with your model and configuration.
