JINK VRF Air Conditioning Controller Instruction Manual
1. Package Contents
- 1 x Gateway
- 1 x Power Adapter
- 1 x Instruction Manual
- 1 x Warranty Card
Carefully open the packaging box and check that it contains the above accessories. If any damage or shortage of accessories is found, please contact us in a timely manner.
2. Product Introduction
Thank you for purchasing the JINK VRF Air Conditioning Controller. This product can connect multi-connected air conditioners to the "Mi Smart Home Platform". Currently, it supports multi-connected air conditioning systems of the following brands: Daikin, Hitachi, Toshiba, Mitsubishi Electric, Hisense, Haier, Panasonic, York, Mitsubishi Heavy Industries, Midea, LG, Oaks, Bosch, Gree, etc.
3. Technical Specifications
| Item | Parameter |
|---|---|
| Input Power | DC 12V |
| Power Consumption | ≤ 1.2W |
| Operating Temperature | 0 - 40°C |
| Operating Humidity | 20% - 85% (non - condensing) |
| Voltage between Air Conditioning Communication Lines | AC 5V |
| Dimensions (Length x Width x Height) | 92mm x 72mm x 60mm |

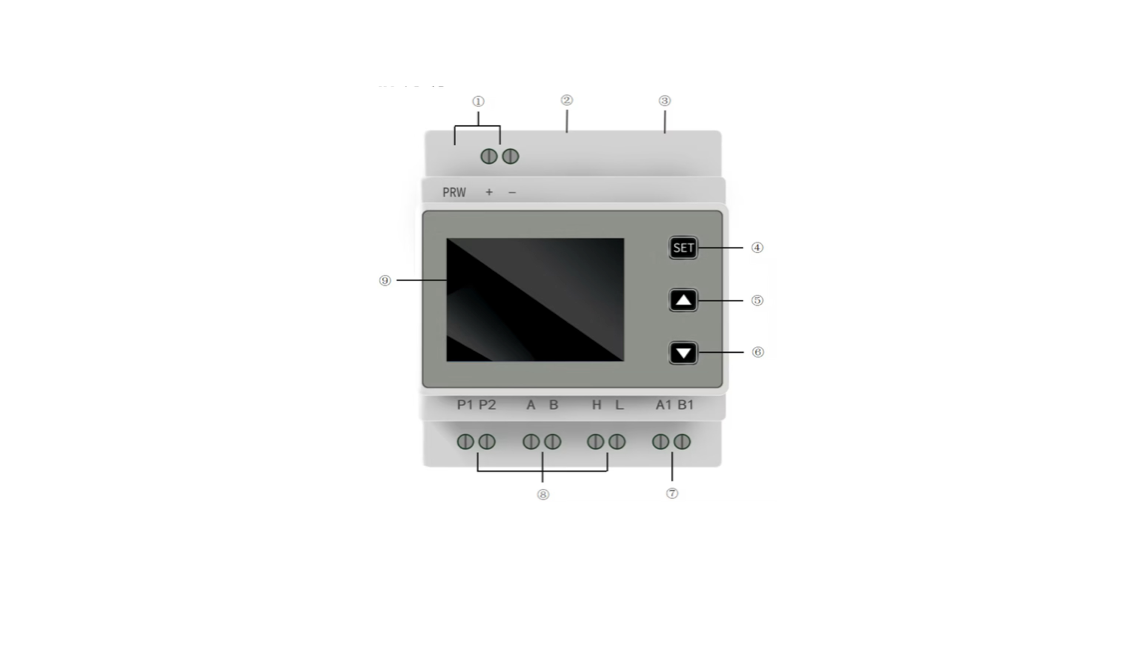

4. Interface and Button Instructions
- PRW Interface: Main power supply port (DC 12V). Power supply specifications are DC 12V. Using an incompatible power supply may damage the product.
- TYPE - C Interface: Backup power supply port.
- RS485 Interface: Used for docking with smart home protocols such as KNX and Modbus.
- Terminal Block: Connects to air conditioners of different brands according to the protocol (see the brand wiring table for details).
- SET Button: Used to confirm options. Press and hold for 2 seconds to confirm.
- Up Arrow Button: Select options upwards. Different functions can be achieved through combination keys.
- Down Arrow Button: Select options downwards. Different functions can be achieved through combination keys.
- LCD Screen: Displays whether the communication is normal, the brand of the air conditioner being controlled, the number of indoor units of the air conditioner searched, and the device parameters of this product.
5. LCD Screen Display Instructions
-
Initialization Phase: When the gateway is connected to the DC 12V power supply and the screen lights up, it starts to search for air conditioners. This process takes about 2 - 5 minutes, depending on the brand of the connected air conditioner and the number of indoor units. At this time, it displays the air conditioner brand, network connection status, gateway version number, wiring instructions, time, and the name of the connected WIFI.
- Control Mode: After searching for indoor air conditioner units, press and hold the SET button, and then press the up or down arrow to switch and display the address of the indoor air conditioner unit. After switching the indoor unit address, it will display the indoor and outdoor unit addresses, switch status, set temperature, air conditioner mode, air conditioner fan speed, indoor temperature, and fault code corresponding to the address.
- Menu Selection: Short - press the up or down arrow to switch options. The options include air conditioner brand, network setting, official version upgrade, customized version upgrade, remote diagnosis, Bluetooth mode, indoor unit switch, indoor unit setting, temperature setting, indoor unit mode, indoor unit setting, and fan speed setting. After selection, press and hold the SET button to confirm. The corresponding option will turn red. Then press the up or down arrow to switch, and finally press and hold the SET button to confirm.
- Fault Display: When the air conditioner runs abnormally, the LCD panel displays the words "Air Conditioner Fault Code" and the digital code. You can consult us via WeChat about the cause and how to repair it according to the air conditioner fault code, or directly contact the air conditioner supplier to repair the air conditioner.
6. Installation Instructions
This product needs to be installed indoors, such as in a control box or a ceiling access panel.
7. Hardware Configuration
Install this product indoors using a rail in a weak - current control box. According to the brand of the controlled air conditioner, select the corresponding air conditioner interface. Please refer to the following table for details:
| Brand | Gateway Wiring Port | Air Conditioner Wiring Port | Is it Necessary to Connect to the Outdoor Unit? |
|---|---|---|---|
| Daikin - Multi - Outdoor Unit | P1, P2 | F1, F2 (Outdoor - Outdoor) | Yes |
| Daikin - Single Outdoor Unit | P1, P2 | F1, F2 (Indoor - Outdoor) | No |
| Mitsubishi Electric - Multi - Outdoor Unit | P1, P2 | M1, M2 (TB7) | Yes |
| Mitsubishi Electric - Single Outdoor Unit | P1, P2 | M1, M2 (TB3) | No |
| Mitsubishi Electric - Lingyao Series | P1, P2 | M1, M2 (Outdoor Unit) M1, M2 (Diverging Box) |
No |
| Hitachi | P1, P2 | 1, 2 | No |
| Toshiba | P1, P2 | U1, U2 | No |
| Panasonic | P1, P2 | U1, U2 | No |
| Hisense | P1, P2 | 1, 2 | No |
| Haier | P1, P2 | P, Q | No |
| York - Qingdao | P1, P2 | 1, 2 | No |
| York - Guangzhou | A, B | A2, B2 | Yes |
| Gree | H, L | G1, G2 | Yes |
| Gree | H, L | D1, D2 | No |
| TCL | H, L | F1, F2 | No |
| Mitsubishi Heavy Industries | A, B | A1, B1 | No |
| Mitsubishi Heavy Industries | A, B | A2, B2 | No |
| Midea, Bosch, Carrier | A, B | X, Y | Yes |
| Midea, Bosch, Carrier | A, B | P, Q | No |
| Midea - Kufeng | A, B | A, B (Outdoor Unit) | Yes |
| Oaks | A, B | A, B | No |
| Samsung | A, B | F1, F2 | No |
| LG | A, B | A, B (CEN) | No |
| McQuay | A, B | Apc, Bpc | Yes |
| Tianjia | A, B | A3, B3 | No |
| Chigo | A, B | P, Q | No |
| Trane | A, B | A, B | Yes |
| York Water Machine | A, B | A, B | Yes |
| York Water Machine | A, B | A3, B3 | Yes |
| McQuay Water Machine | A, B | Apc, Bpc | Yes |
| Carrier Water Machine | A, B | A, B | Yes |
| Trane Water Machine | A, B | CN29 (A, B) | Yes |
Notes:
- When the Daikin air conditioner is a multi - outdoor unit system, connect to the "Outdoor - Outdoor" port of the Daikin system during wiring; when the Daikin air conditioner system is a single - outdoor unit system, connect to the "Indoor - Outdoor" port of the Daikin system during wiring.
- When the Mitsubishi Electric air conditioner is a multi - outdoor unit system, connect the centralized control line to "M1, M2" of TB7, and insert the jumper cap of the centralized control switch CN41 on the outdoor unit PCB board into CN40.
8. Precautions
- The wiring terminals of the input terminals for different control methods are different.
- It is recommended to use the power supply自带 by the device or a DC 12V power supply produced by a regular manufacturer.
- Incorrect wiring may damage this product.
- Before wiring, be sure to cut off the power of the gateway and the air conditioner to avoid malfunctions.
- Please avoid running the signal cables side by side with each other and with the power cable. Otherwise, malfunctions may occur due to signal interference. If it is impossible to avoid running side by side, please keep the communication line related to this product at a distance of more than 15 cm from the communication line of the air conditioner system, and at a distance of more than 30 cm from other wiring. Or connect the cable to an iron protection tube and ground one end of the protection tube. The chassis must be grounded in accordance with Class D grounding requirements.
- If the power cable is accidentally connected to the signal terminal, the fuse will burn out. In case of such a situation, please contact the air conditioner manufacturer. Unauthorized disassembly and repair are strictly prohibited.
9. Three - Package Warranty Voucher
In accordance with the "Law of the People's Republic of China on the Protection of Consumer Rights and Interests" and the "Law of the People's Republic of China on Product Quality", we promise the following:
- Free warranty service can be obtained with this warranty regulation and relevant sales invoices. If the sales certificate cannot be presented, the free warranty period of the product will start from its production date.
- In case of performance failures (excluding human factors), but the product parts are complete and the appearance is undamaged, you can enjoy the 7 - day return and exchange service and the 15 - day exchange or free warranty service from the date of sale.
- In case of performance failures (excluding human factors), you can enjoy 1 - year free warranty service from the date of sale.
- If the repaired product needs to be mailed, the mailing cost shall refer to the company's after - sales repair cost standard.
10. Non - Warranty Regulations
- The warranty period has expired, or it is impossible to provide purchase vouchers such as invoices and sales receipts.
- Product failures caused by human factors, incomplete parts, or damaged appearance.
- Normal product wear and tear, such as the natural aging of the housing and components.
- Product failures or damages caused by improper installation, use, or maintenance.
- Product failures or damages caused by transportation and handling during the customer's return of the product for repair.
- Product failures or damages caused by force majeure factors such as earthquakes and fires.
- Product failures or damages caused by other problems not related to the product's own design and quality.
Friendly Reminder: Please keep the product packaging for warranty purposes.
