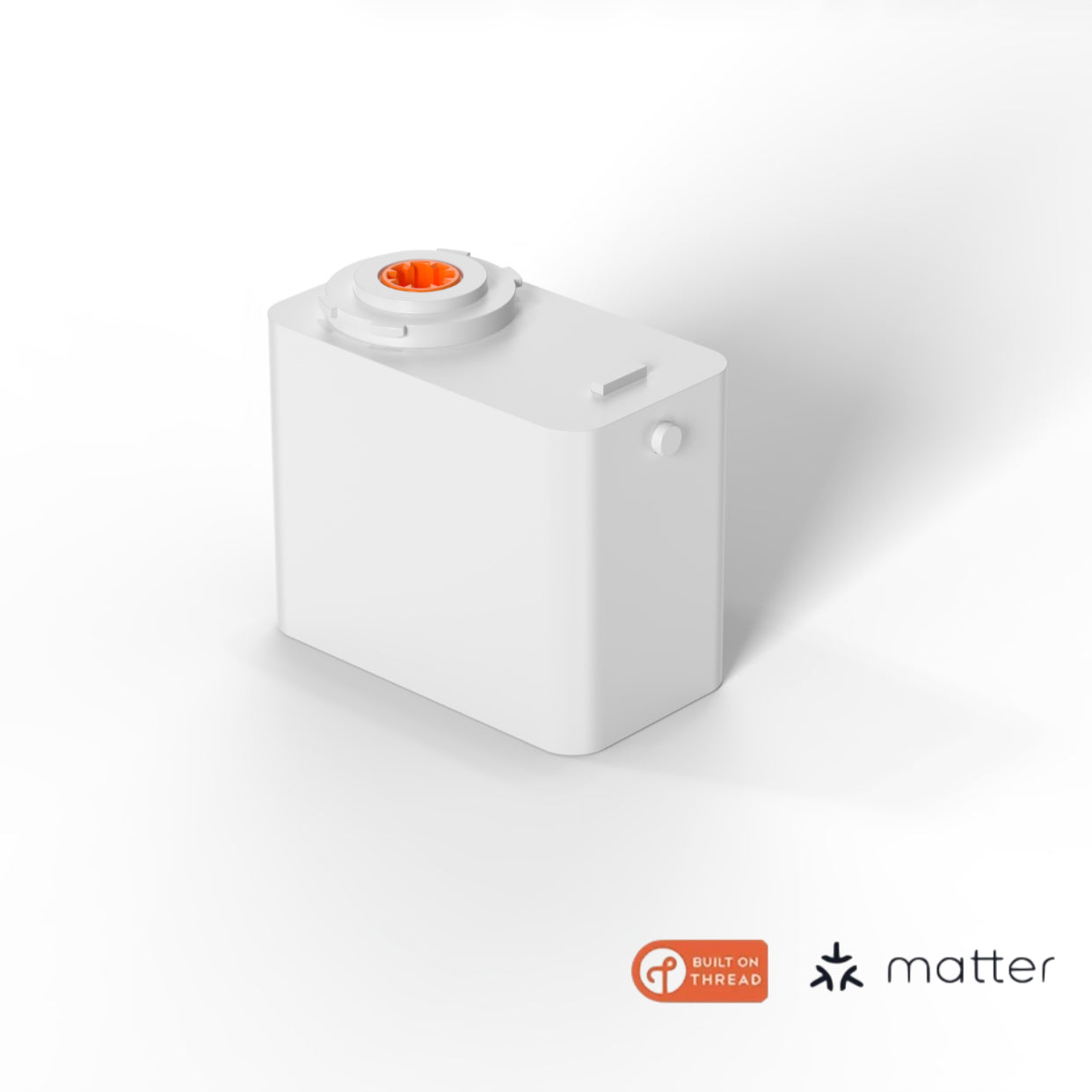

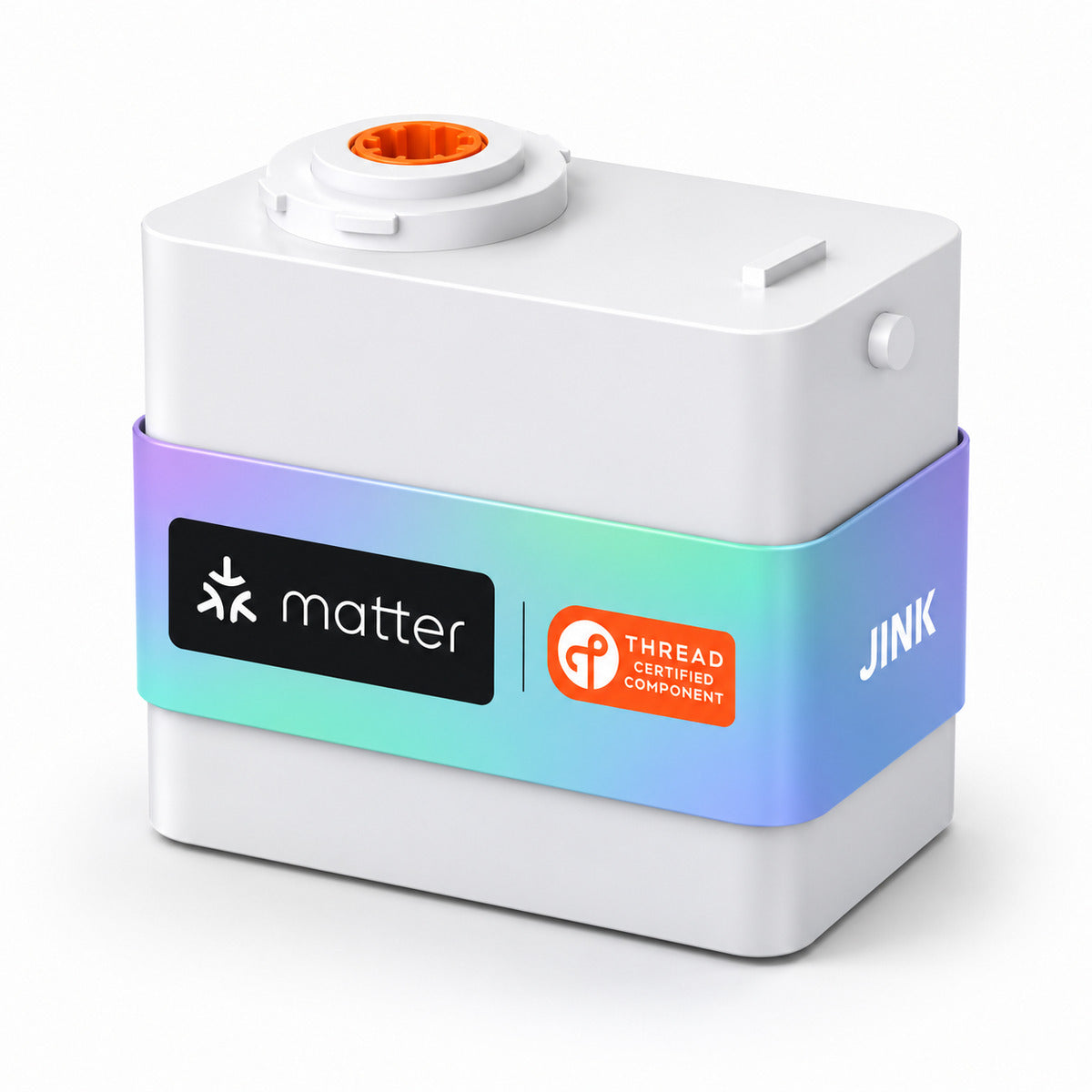

JINK Motor Air at a glance
Matter Shade Controller Air's access to Apple's HomeKit provides users with a more unified and centralized management experience.
- Rated Power: 24 W
Overview
Matter Shade Controller Air's access to Apple's HomeKit provides users with a more unified and centralized management experience. Through the HomeKit app on Apple devices, users can easily set up, program and remotely control their window treatments. Whether you are at home, in the office or on the way out, as long as your Apple device is connected to the network, you can control the status of the curtains anytime and anywhere, truly realizing the remote intelligent management of the home environment.
Highlights
Next-Gen Brushless Motor
Frictionless, silent, and built to last. Delivers powerful performance with barely a whisper.
Matter over Thread
The future of smart homes. Seamless, lightning-fast connectivity across all your favorite devices and platforms.
Tech Specs
Dimensions & Weight
-
Size: 83 × 65 × 46 mm
-
Weight: 0.3 kg
-
Cable Length: 0.8 m
Performance
-
Rated Torque: 2.0 N.m
-
Operating Speed: 10 cm/s (50 rpm)
-
Acoustic Noise: 28 dB
-
Recommended Load: Up to 60 kg
-
Maximum Load: 100 kg
Power & Operating Environment
-
Power Supply: 100-240V AC (50/60Hz)
-
Rated Power: 24 W
-
Operating Current: 0.25 A
-
Operating Temperature: -10°C to 50°C
-
Thermal & Protection: Class E / IP20
-
Running Time: S2 2min
Connectivity
-
Smart Home Protocol: Matter over Thread
-
Wireless: Wi-Fi / Bluetooth (2.4GHz)
- Radio Frequency: 433 MHz
What’s in the Box
JINK Motor Air*1
System Requirements
Operating System: Minimun required iOS 18.5 , watchOS 11.5
Featured App
JINK Motor Air — Frequently Asked Questions
What is JINK Motor Air?
Matter Shade Controller Air's access to Apple's HomeKit provides users with a more unified and centralized management experience.
What dimensions or fitting size should I plan for?
- Size: 83 × 65 × 46 mm
- Cable Length: 0.8 m
Match the selected model to the installation drawing and available clearance before ordering.
What power supply and motor ratings are listed?
- Maximum Load: 100 kg
- Power Supply: 100-240V AC (50/60Hz)
- Rated Power: 24 W
The listed values do not replace the selected model’s wiring diagram. Confirm the supply, connected load and installation requirements before energizing the product.
What do I need for Matter over Thread setup?
This model is listed as Matter over Thread. You need a compatible Matter controller and Thread border router; one device may provide both roles. Check the selected ecosystem and firmware before purchase. A Wi-Fi router alone is not a substitute for Thread infrastructure.
Will it fit my existing curtains or shades?
Compatibility depends on the mechanism, track or tube, adapter, travel and curtain or shade load. Send the existing system model, dimensions and photographs so the correct motor and fittings can be confirmed.
Are tracks, adapters and controls included?
Confirm the itemized package for the selected motor. Do not assume that tracks, mounting adapters, remote controls, chargers or smart-home controllers are included unless expressly listed.
What information should I send for product selection or a project quote?
Include JINK Motor Air, the selected configuration, quantity, destination country and installation details. Add the existing equipment model and target control platform where relevant. Request confirmation of compatibility, included components and delivery timing before committing to the project.
