 Overview

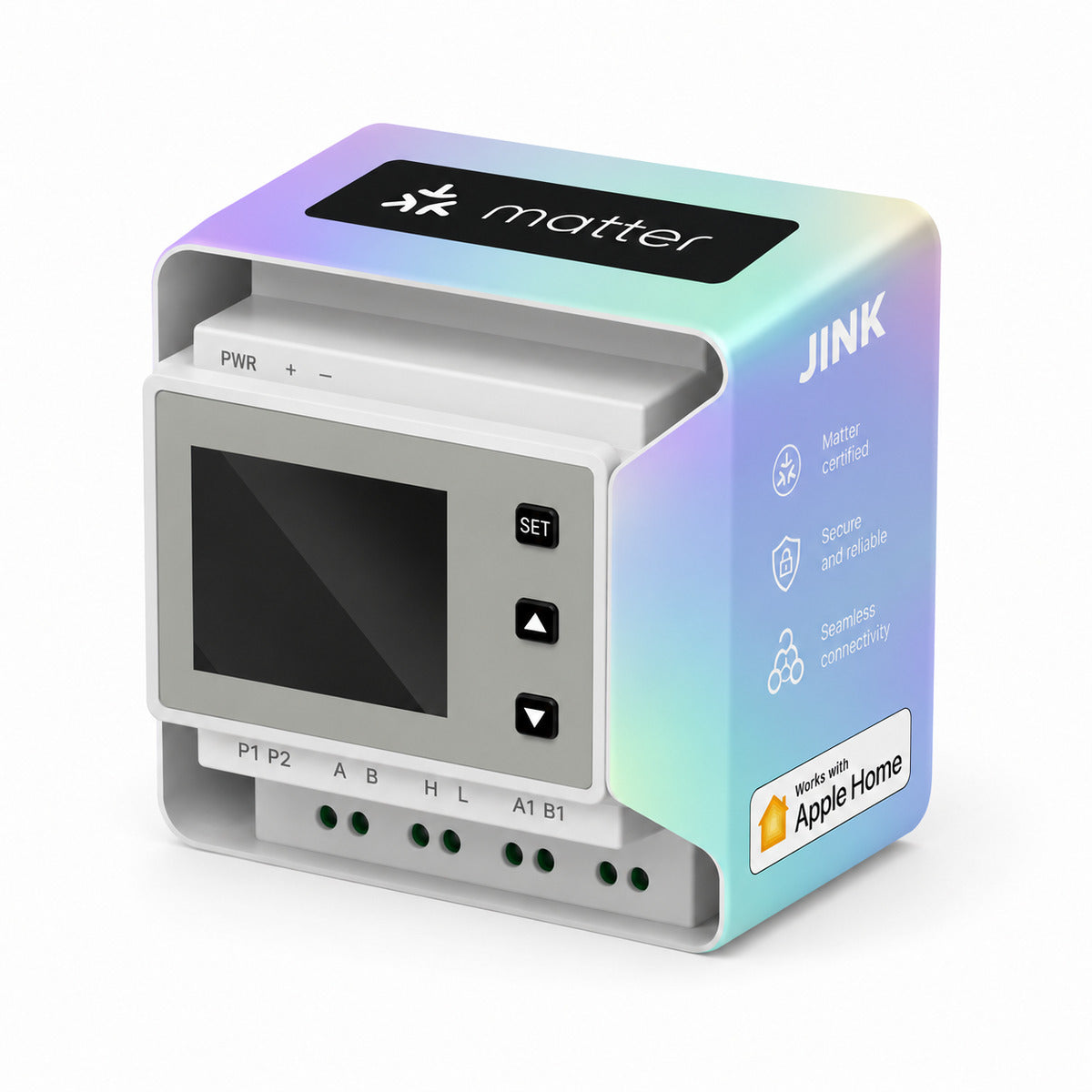

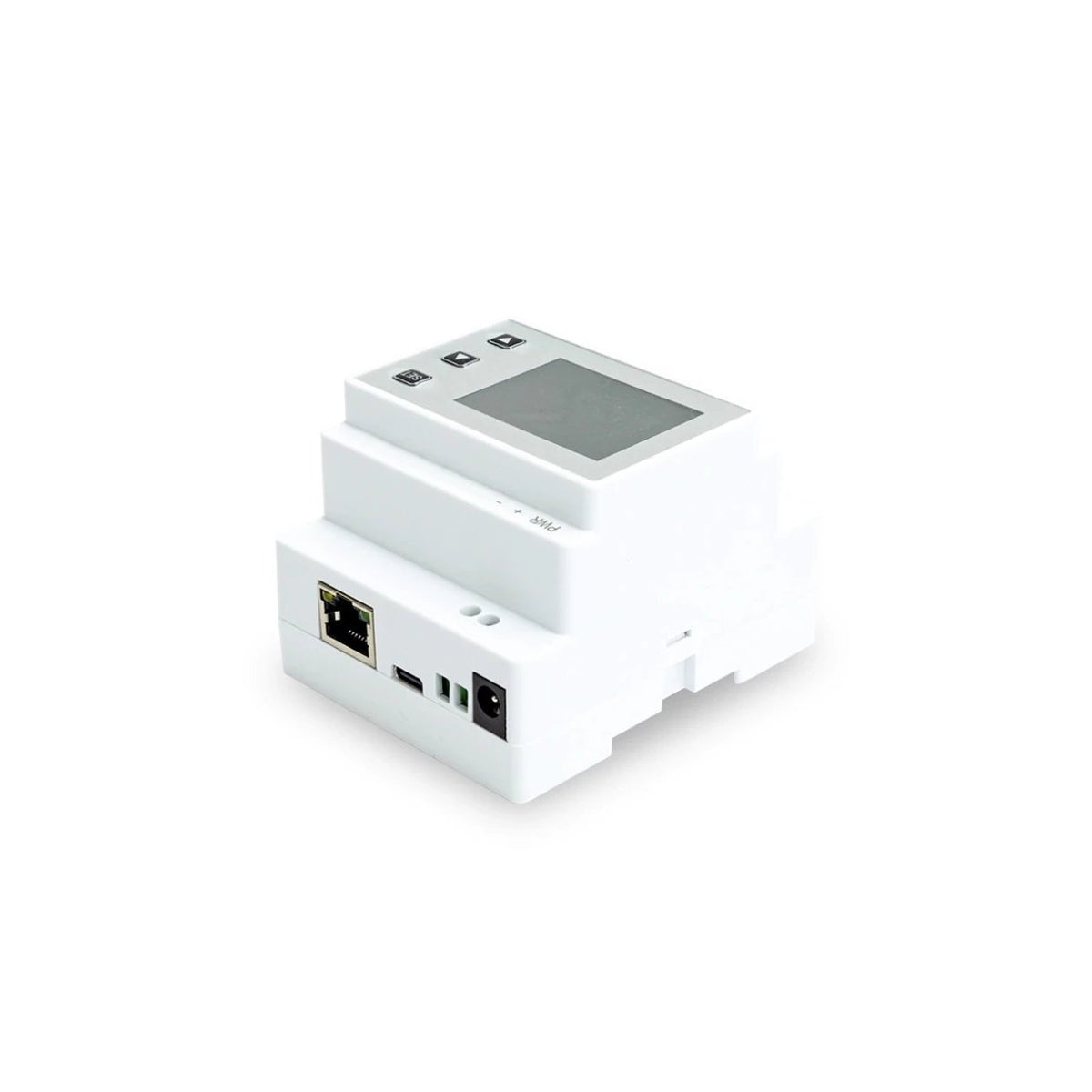

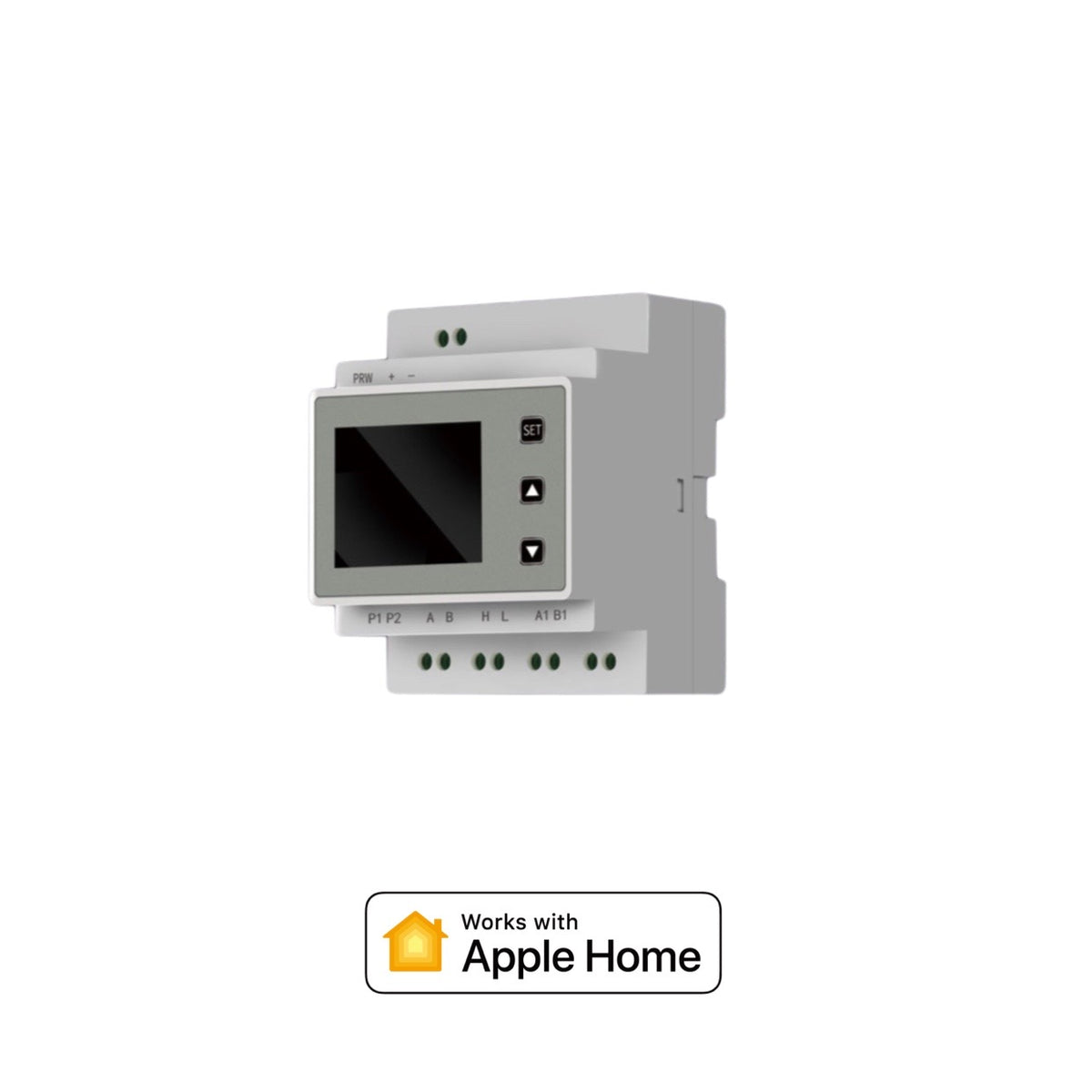

The JINK VRF Air Conditioning Controller is an intelligent gateway designed for multi-split central air conditioning systems, powered by the Matter protocol. It seamlessly integrates traditional HVAC systems with leading smart home ecosystems like Apple Home, Google Home, and Amazon Alexa, enabling remote control, voice commands, and scene automation for a fully connected smart climate experience.


Key Features

  1. Matter Protocol Enabled, Ecosystem Agnostic

    • Native Matter over Wi-Fi support, eliminating the need for additional hubs.
    • Cross-platform compatibility with Apple HomeKit, Google Home, and Amazon Alexa for multi-device automation (e.g., syncing AC with lights and curtains).
  2. Universal Brand Compatibility

    • Supports 40+ HVAC brands, including Daikin, Hitachi, Mitsubishi Electric, Gree, Midea, Haier, York, LG, Bosch, and more (full list in compatibility table).
    • Compatible with VRF systems and water-source heat pumps for commercial and residential applications.
  3. Industrial-Grade Stability & Security

    • Dual Power Supply: Primary DC12V (PRW port) + backup TYPE-C 5V input for uninterrupted operation.
    • Anti-Interference Design: RS485 isolation circuit + grounded metal conduit for noise immunity.
    • Local Data Storage: All data remains on-device for enhanced privacy.
  4. Hassle-Free Installation & Smart O&M

    • DIN rail mounting (92×72×60mm) for indoor installation (e.g., low-voltage control box or ceiling access panel).

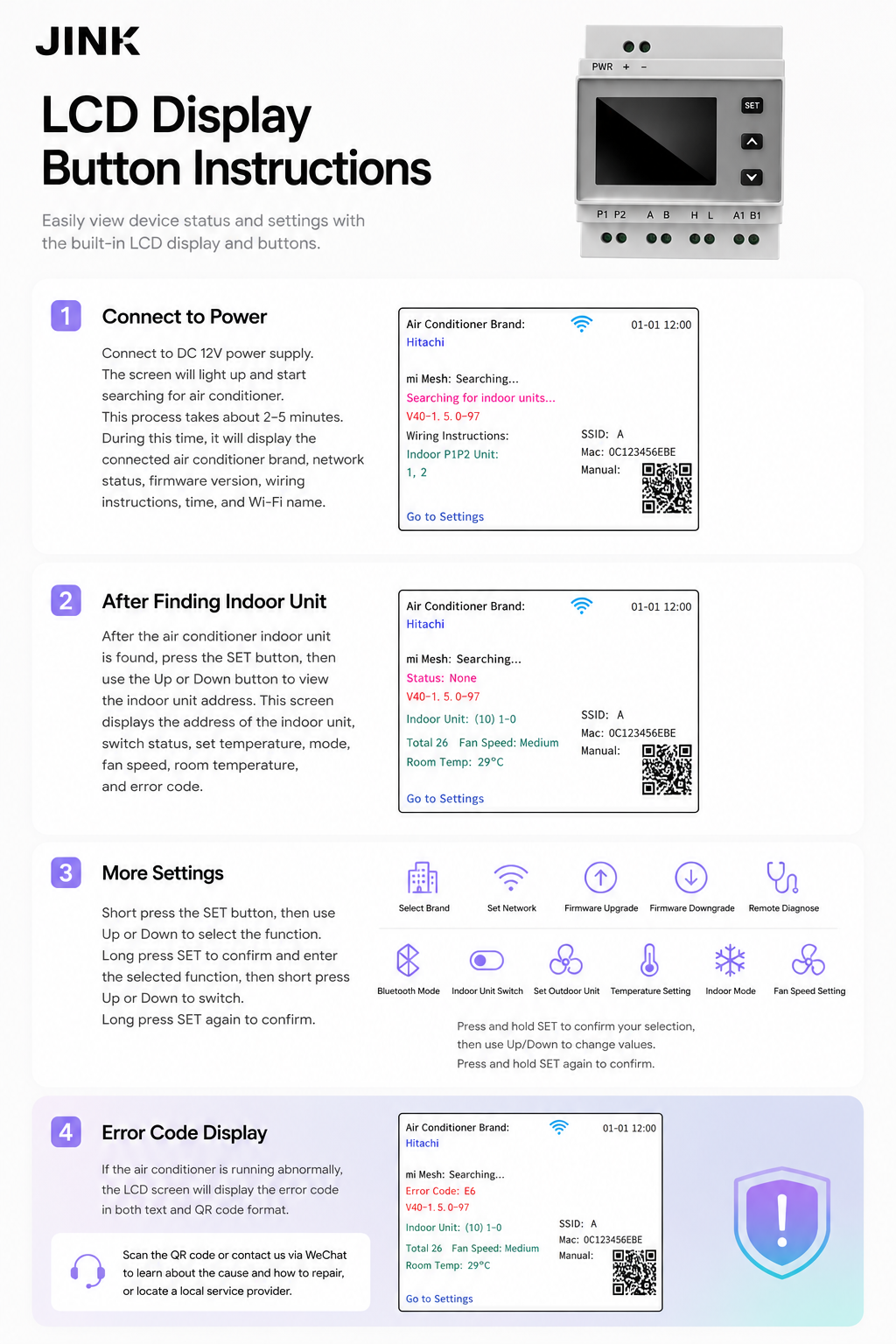

    • 2.4-inch LCD screen for real-time status monitoring (fault codes, temperature, mode) and OTA firmware updates.

Can access the platform

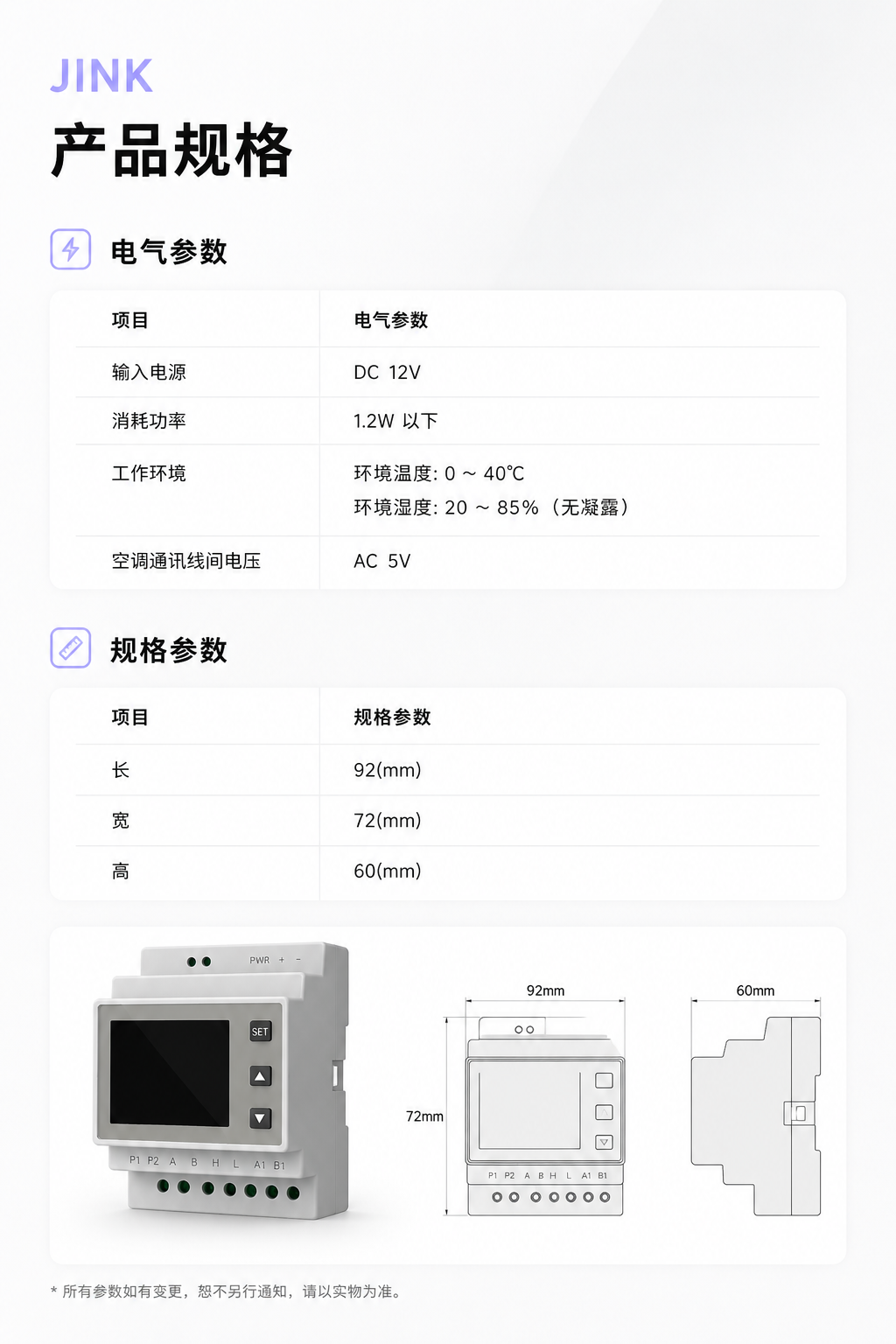

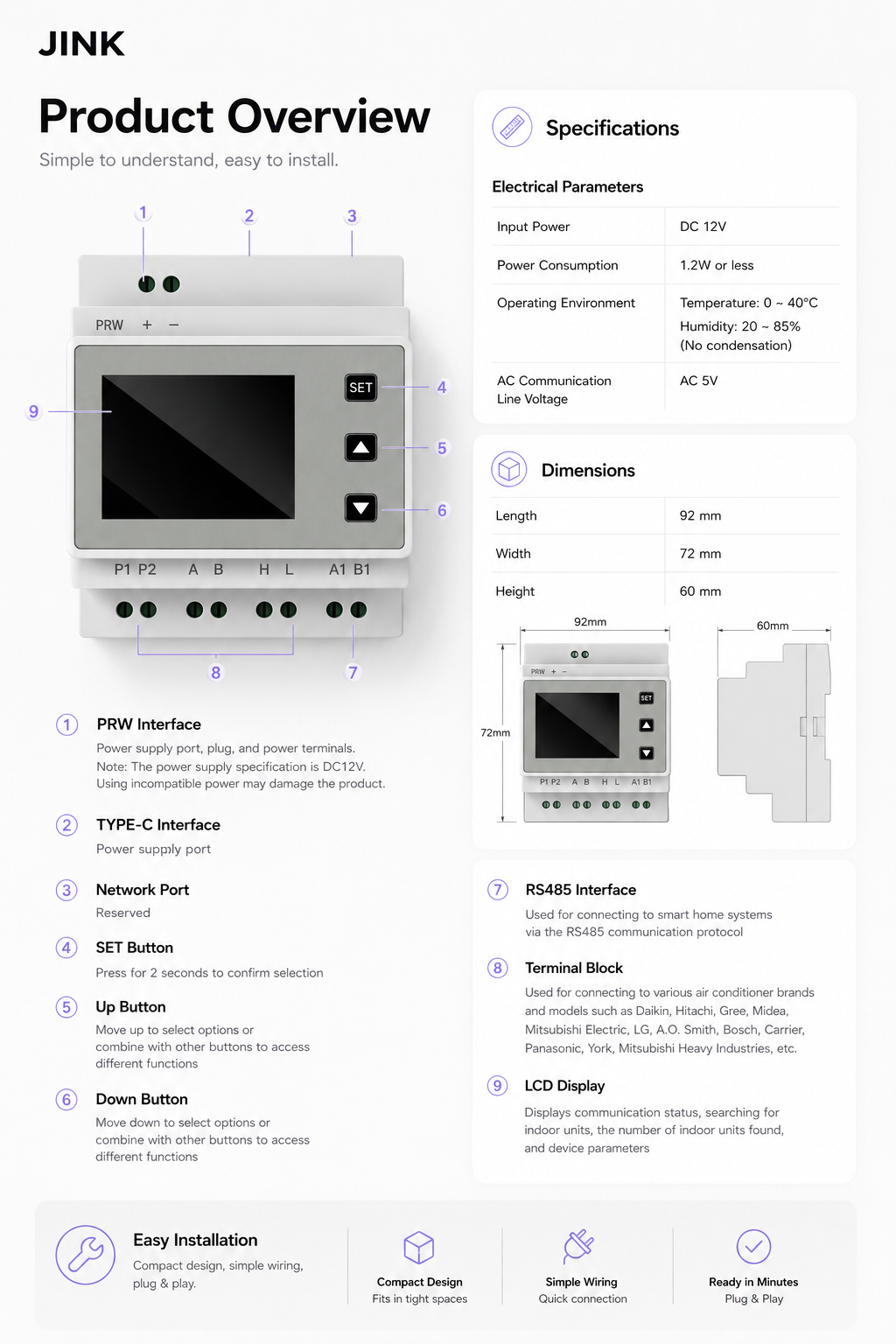

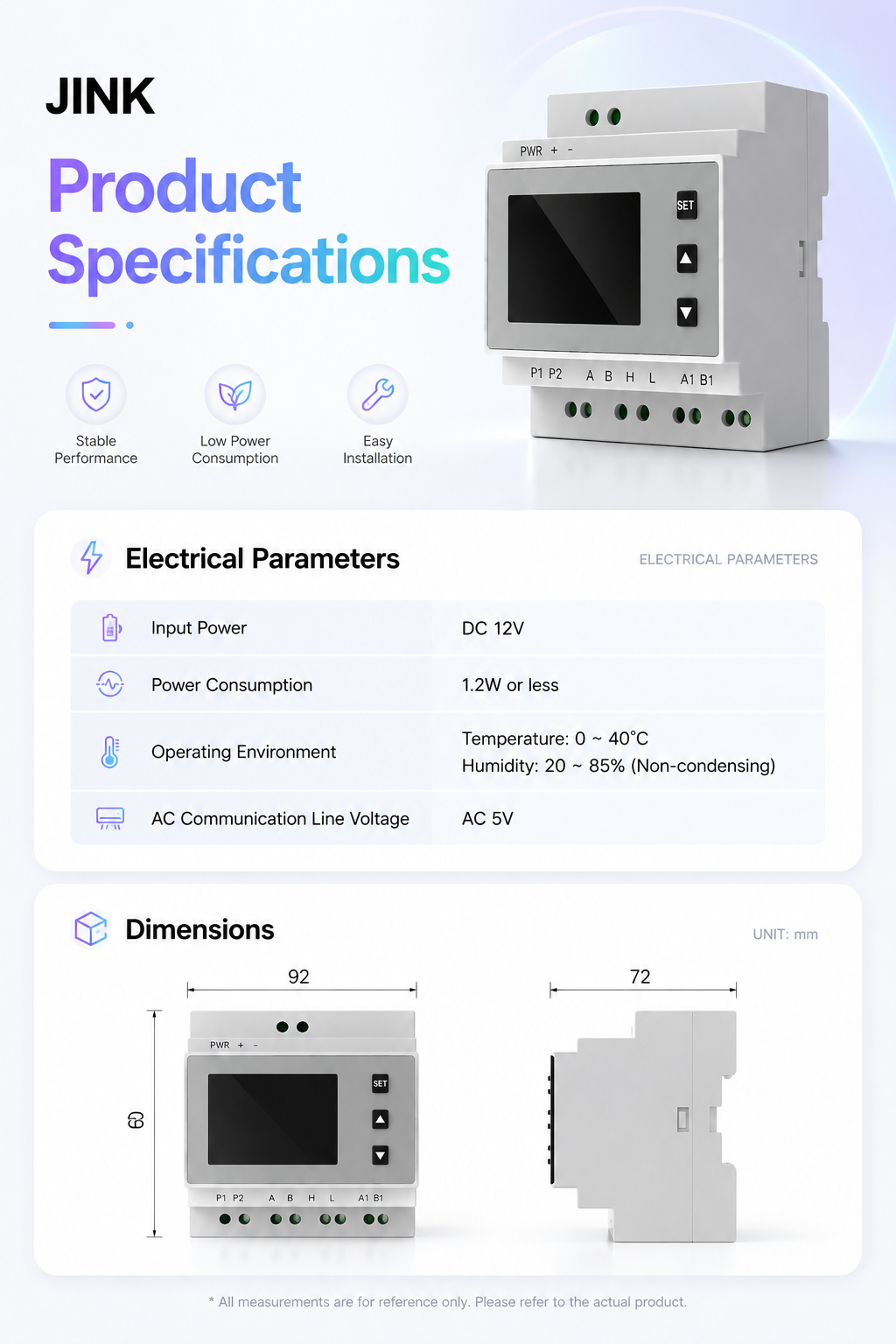

Technical Specifications

Category Details
Model JINK VRF Air Conditioning Controller
Protocol Matter over Wi-Fi
Power Input DC12V (primary) / TYPE-C 5V (backup)
Power Consumption ≤1.2W (standby)
Operating Temp. 0~40℃ (32~104°F)
Operating Humidity 20%~85% (non-condensing)
Communication RS485 (smart home integration)
Dimensions 92mm (L) ×72mm (W) ×60mm (H)

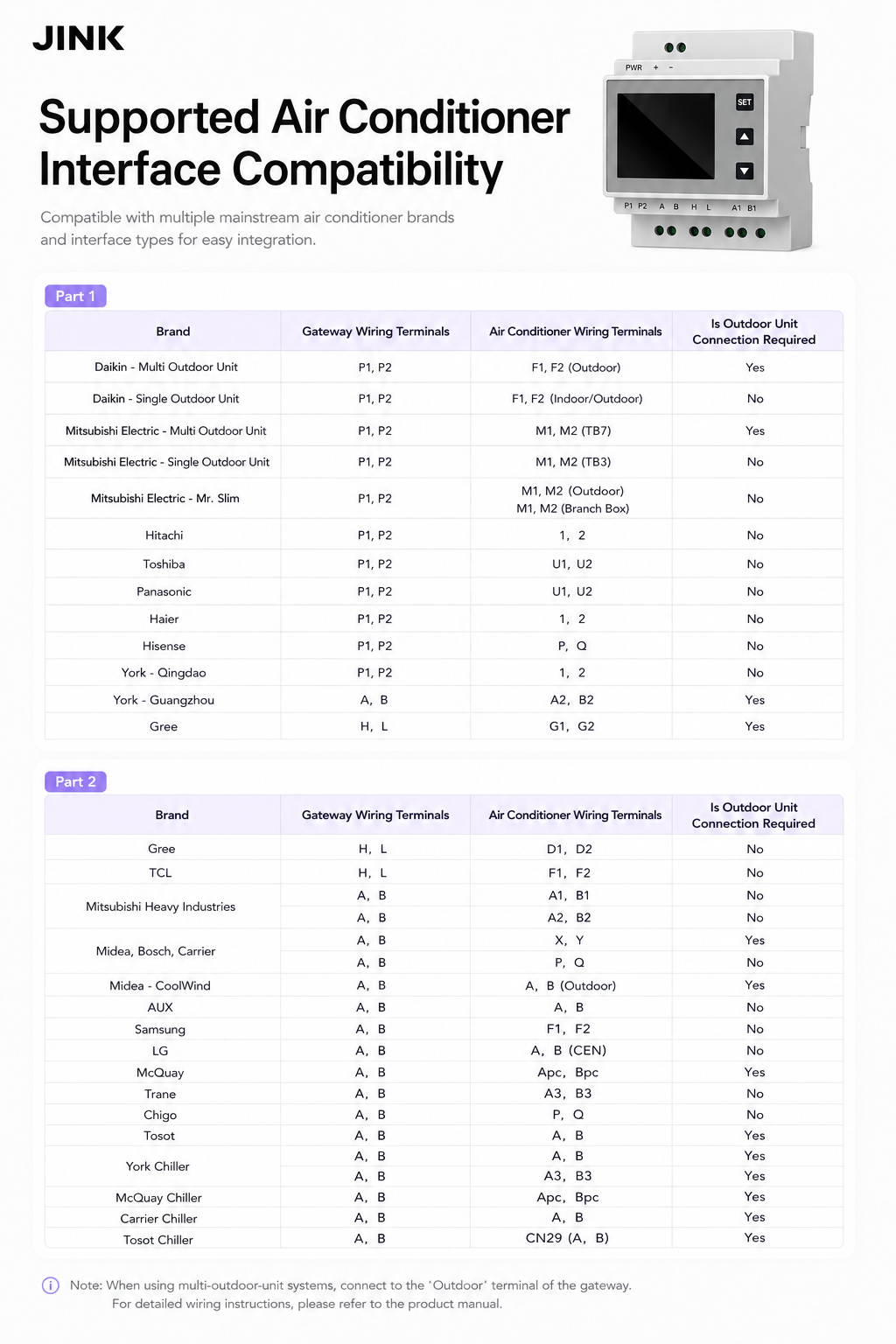

Compatibility Highlights

Brand Category Supported Brands
Japanese Brands Daikin, Hitachi, Toshiba, Mitsubishi Electric, Panasonic, Mitsubishi Heavy Industries
Top Chinese Brands Gree, Midea, Haier, Hisense, AUX, TCL, Chigo
Western Brands York, Bosch, Trane, Carrier, McQuay, LG
Water-Source Systems York Water-Source, McQuay Water-Source, Trane Water-Source, Carrier Water-Source

Installation & Configuration

  1. Hardware Setup

    • Mount the controller indoors using DIN rail (e.g., electrical cabinet or ceiling panel).
    • Connect to the HVAC system via the labeled terminal blocks (refer to brand-specific wiring guide).
  2. Matter Protocol Setup

    • Scan the QR code via smart home app (Apple Home/Google Home) for automatic pairing.
    • Create custom scenes: e.g., "Away Mode: AC off + lights off" or "ECO Mode: 24°C + medium fan speed."
  3. Troubleshooting

    • Fault codes (e.g., E5, F3) displayed on the LCD screen; scan code via WeChat for solutions.
    • Remote diagnostics and log export for rapid issue resolution.

Safety & Compliance

  1. Power Requirements
    • Use only the included DC12V adapter; third-party adapters may damage the device.
  2. Signal Integrity
    • Maintain ≥15cm spacing between communication and power cables; ≥30cm from other wiring.
    • Ground metal conduit and ensure Class D grounding for the enclosure.
  3. Prohibited Actions
    • Non-technical personnel must not disassemble the unit. Contact support for fuse replacement.

Warranty & Support

    • Warranty Policy:
      • 1-year limited warranty (proof of purchase required); 7-day return policy.
      • Lifetime technical support with real-time fault code assistance.
    • Premium Services:
      • Custom firmware development for enterprise users (e.g., BMS integration).
      • On-site installation guidance for commercial projects (by appointment).
