JINK Glide Drop — Smart Pendant Light
JINK Glide Drop — Smart Pendant Light
JINK Glide Drop — Smart Pendant Light: Quick Answer
JINK Glide Drop — Smart Pendant Light is a slender magnetic smart pendant for the JINK Glide standard 48V magnetic track system.
- Manufacturer model: GK-CX-DX-8
- Output: 8W, 24° beam, CRI 97
- Light color: 2700–6500K tunable white

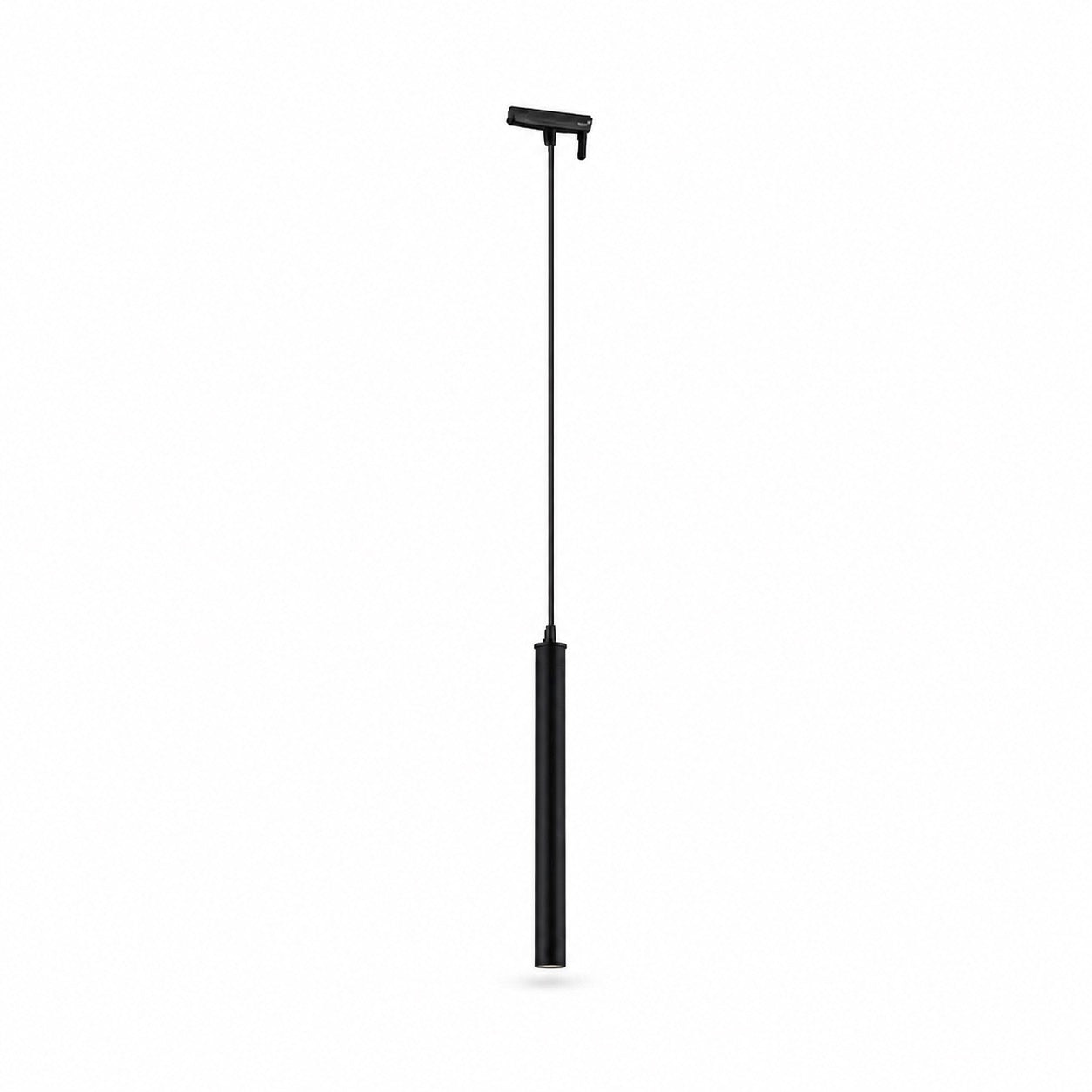

- Available finishes: Black, fully White
Overview

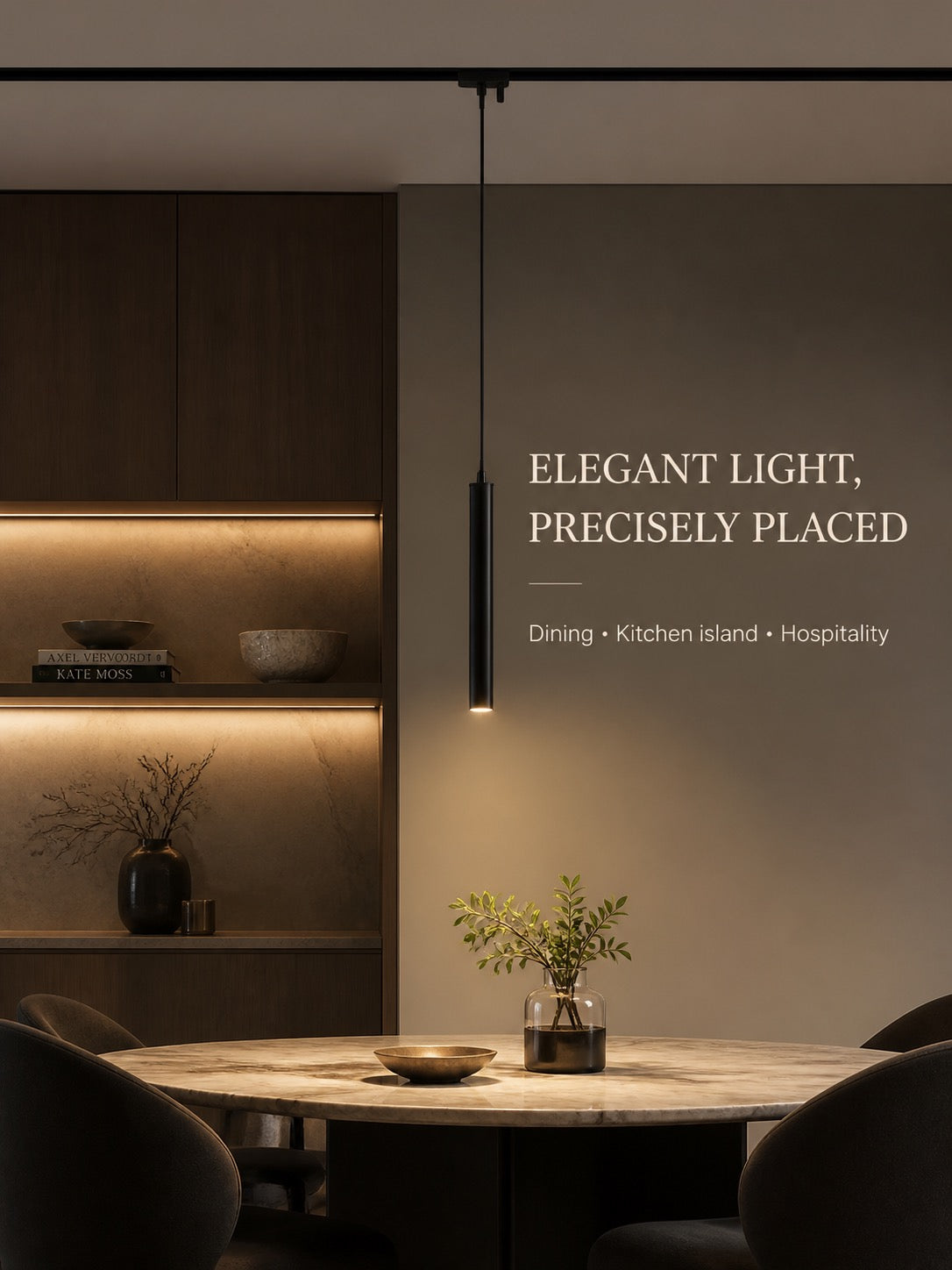

A suspended cylindrical accent light that adds a clean vertical element above tables, counters and display areas while connecting directly to standard Glide magnetic track.
Key Features
- Slender suspended cylindrical form
- Focused 24° downward beam
- Magnetic track-mounted pendant adapter
- High color rendering: CRI 97
- Wide 2700–6500K tunable-white range
- Black and fully White SKU options
Technical Specifications
| Parameter | Specification |
| Manufacturer model | GK-CX-DX-8 |
| Dimensions | L230 × W26 × H80 mm |
| Power | 8W |
| Beam angle | 24° |
| CRI | 97 |
| Color temperature | 2700–6500K |
| Operating voltage | DC 48V |
| System | JINK Glide standard magnetic track |
| Finishes | Black, White |

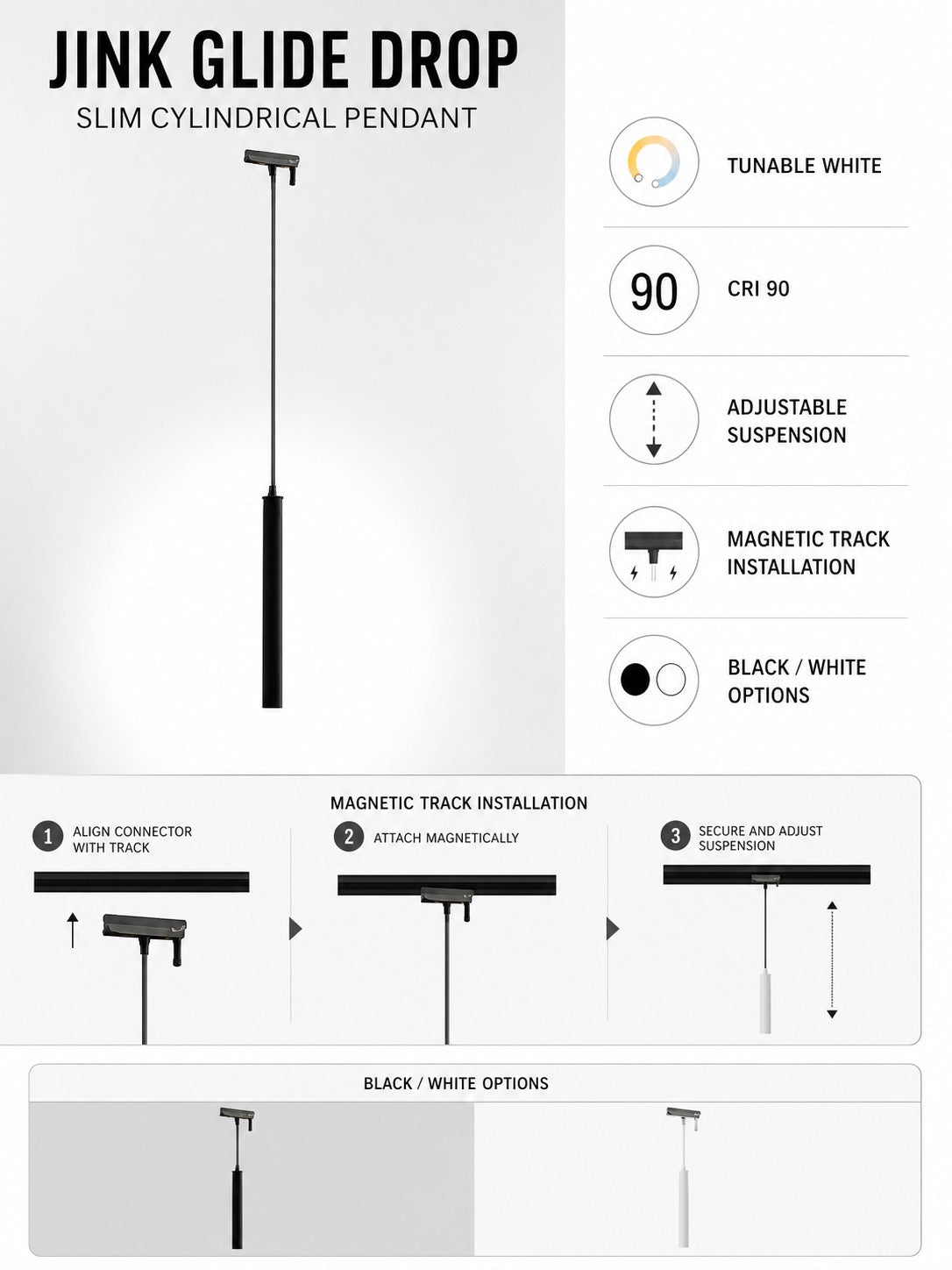

Compatibility & Installation
Designed for the JINK Glide standard 48V magnetic track system. It is not specified for Glide Air ultra-slim MT26 rail or Glide Air woven conductive track.
Switch off power before insertion or removal. Seat the magnetic adapter fully, confirm mechanical retention and polarity, and have the final 48V electrical configuration checked by a qualified installer.
What’s in the Box
1 × JINK Glide Drop; compatible smart driver/control component as configured for the selected JINK Glide system.
Important Notes
Final performance depends on the compatible JINK Glide track, driver, controller, network and hub configuration used in the project. Verify total connected load before installation.
Questions about JINK Glide Drop — Smart Pendant Light
Which track system does it use?
It is designed for JINK Glide standard 48V magnetic track and should not be mixed with Glide Air MT26 ultra-slim or woven-track accessories.

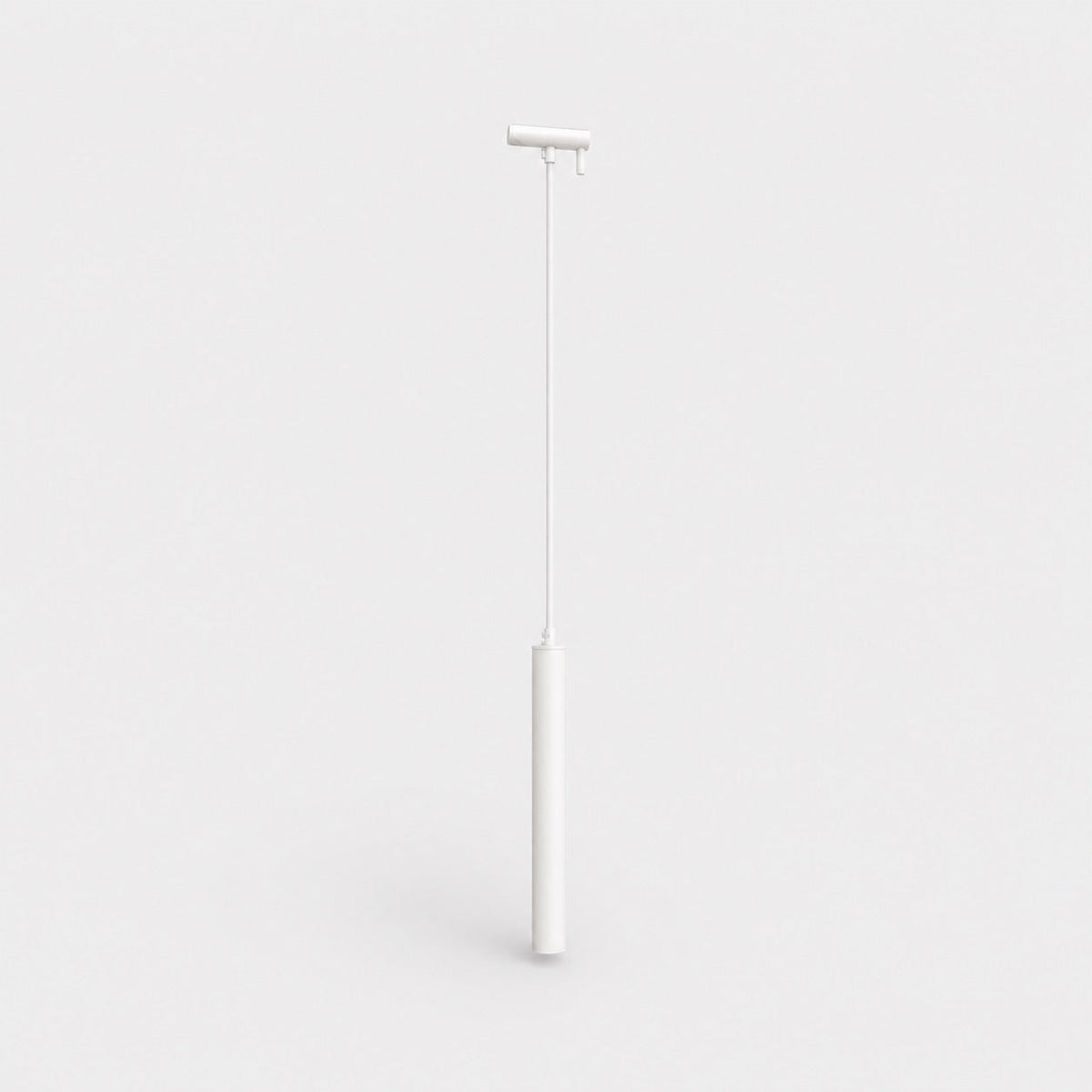

Is the White version fully white?
Yes. The White SKU uses a fully White exterior housing and magnetic adapter; only optical and electrical contact surfaces retain their functional material finish.
What should I confirm before ordering?
Confirm the manufacturer model, fixture dimensions, beam angle, required quantity, finish, system compatibility, driver capacity and the intended smart-control environment.
JINK Glide Drop — Frequently Asked Questions
What is JINK Glide Drop?
JINK Glide Drop — Smart Pendant Light is a slender magnetic smart pendant for the JINK Glide standard 48V magnetic track system.
What light output, color temperature and beam options are specified?
- Beam angle: 24°
- CRI: 97
- Color temperature: 2700–6500K
- High color rendering: CRI 97
Use the specification for the selected model. A tunable-white specification alone does not confirm RGB color effects.
What dimensions or fitting size should I plan for?
- Dimensions: L230 × W26 × H80 mm
Match the selected model to the installation drawing and available clearance before ordering.
What electrical ratings should my installer check?
- Power: 8W
- Output: 8W, 24° beam, CRI 97
The listed values do not replace the selected model’s wiring diagram. Confirm the supply, connected load and installation requirements before energizing the product.
Which options can I select for JINK Glide Drop?
- Color: Black · White
Use the product selector to confirm the available combination. Separate option lists do not mean every combination is offered.
How should JINK Glide Drop be installed?
Designed for the JINK Glide standard 48V magnetic track system . It is not specified for Glide Air ultra-slim MT26 rail or Glide Air woven conductive track.
Switch off power before insertion or removal. Seat the magnetic adapter fully, confirm mechanical retention and polarity, and have the final 48V electrical configuration checked by a qualified installer.
Confirm the final mounting position, fixing method and clearance. Have mains wiring and any structural work carried out by a qualified professional.
Can I use it outdoors or in a wet area?
Outdoor or wet-area suitability is not established by the product name. Confirm a model-specific ingress-protection rating and approved installation conditions before selecting it for those locations.
What is included with JINK Glide Drop?
1 × JINK Glide Drop; compatible smart driver/control component as configured for the selected JINK Glide system.
Confirm the package for the selected configuration; separately specified accessories are not automatically included.
Which app or smart-home platform can I use?
Confirm the exact model’s communication protocol, controller requirements and supported platform before ordering. The product category or another JINK model’s compatibility is not sufficient evidence for this item.
What information should I send for product selection or a project quote?
Include JINK Glide Drop, the selected configuration, quantity, destination country and installation details. Add the existing equipment model and target control platform where relevant. Request confirmation of compatibility, included components and delivery timing before committing to the project.
