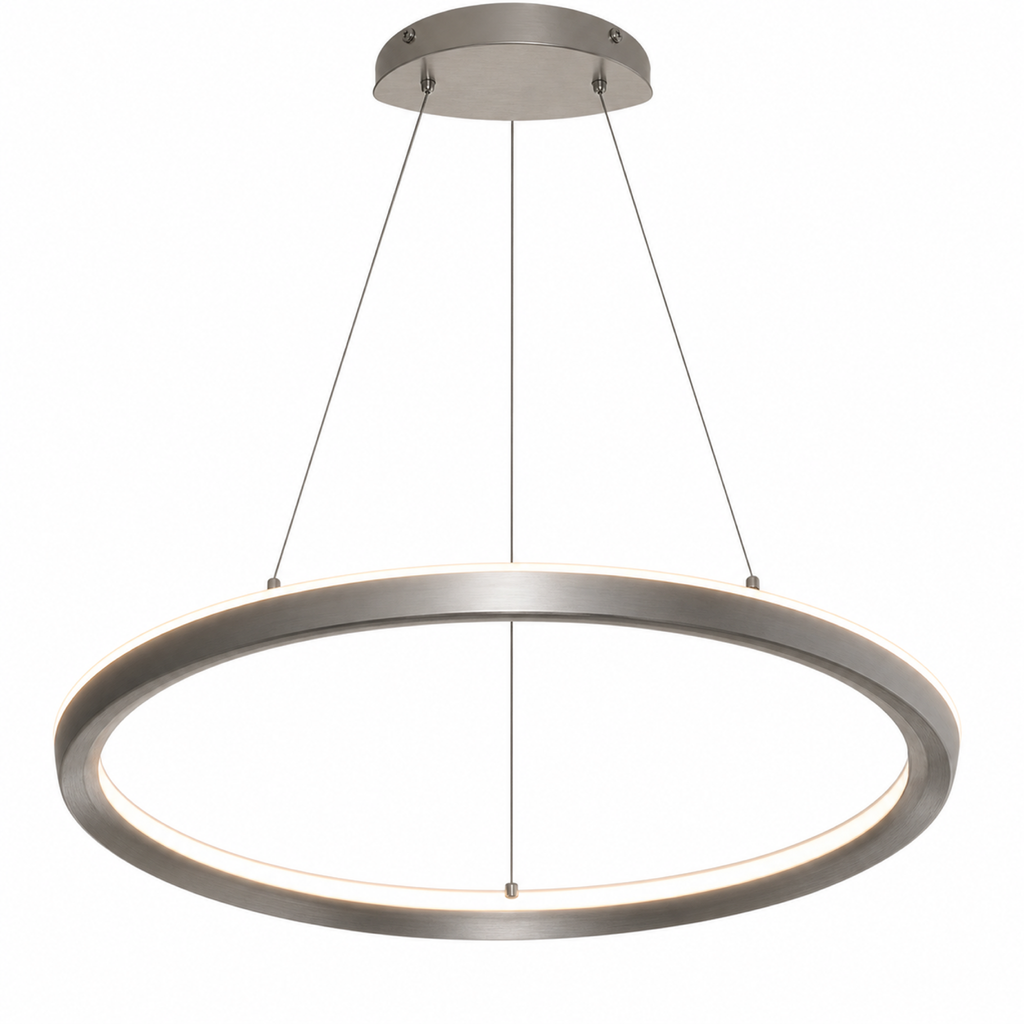

JINK Bond Evolens Ring Pendant
JINK Bond Evolens Ring Pendant
JINK Bond Evolens Ring Pendant at a glance

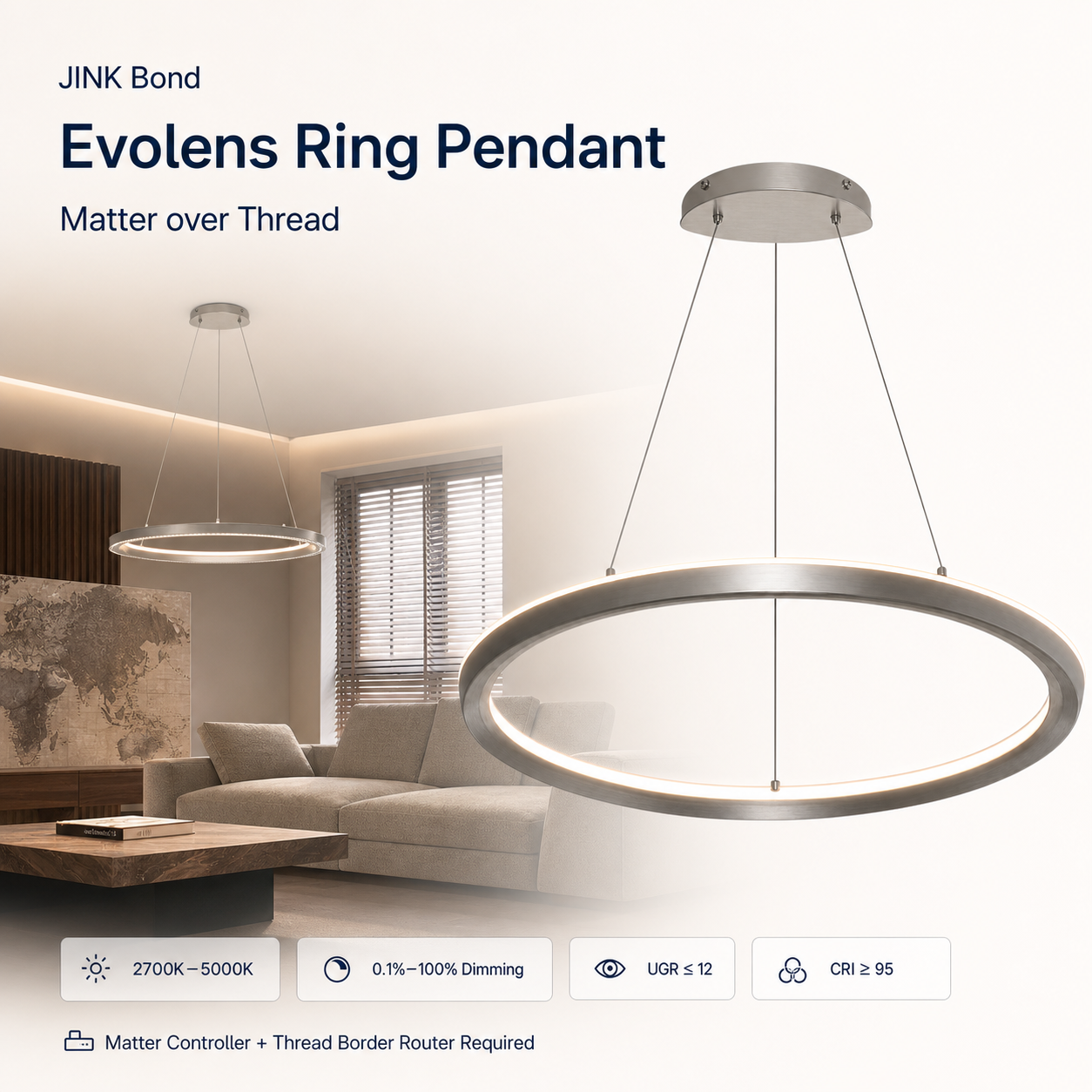

The Evolens Ring Pendant pairs a precisely considered lighting form with JINK Matter over Thread control. Designed for indoor residential and hospitality spaces, it brings architectural presence to the room even when switched off.
- Material: metal+optical lens
- Color temperature: 2700K-5000K
JINK Bond Evolens Ring Pendant
A sculptural smart light with refined materials, adjustable illumination, and Matter over Thread connectivity for a calmer connected home.
Overview
The Evolens Ring Pendant pairs a precisely considered lighting form with JINK Matter over Thread control. Designed for indoor residential and hospitality spaces, it brings architectural presence to the room even when switched off.
Highlights
- Matter over Thread smart-lighting connectivity
- Requires a compatible Matter controller and Thread Border Router
- Adjustable brightness and tunable white range as listed for each model
- Refined structure, finish, dimensions, and optical design
- This Matter version does not support rotary knob control
Design
Precisely proportioned for the selected configuration, with a restrained canopy, adjustable suspension where specified, and materials carried over from the factory product specification.
Experience
Create focused task lighting, softer evening ambience, or a balanced architectural glow. Model-specific upper and lower light behavior is listed in the variant specifications.
Smart Control
Control the Matter version through a compatible Matter ecosystem. Available functions depend on the selected model and controller, and may include power, dimming, tunable white, scenes, schedules, and automations.

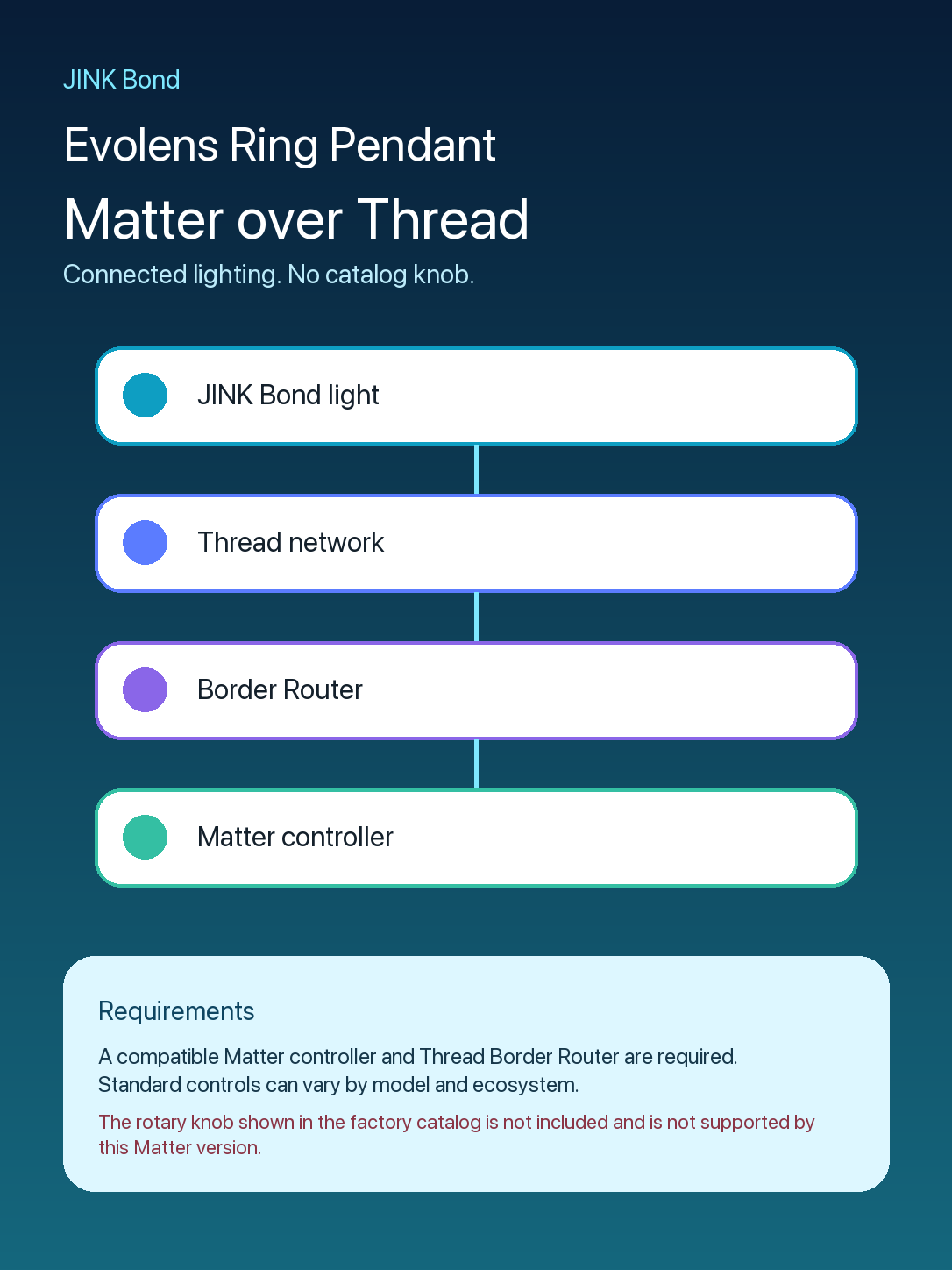

Matter Integration
Protocol: Matter over Thread.
Required home infrastructure: a compatible Matter controller and Thread Border Router. One device may provide both functions.
Important: rotary knob control is not supported by this Matter version. Platform features and availability may vary.
Specifications
- Finish: grey+satin nickel (black+Tideno gold)
- Material: metal+optical lens
- Ingress protection: IP20
- Glare control: UGR≤12
- Color rendering: upward CRI ≥90; downward CRI ≥95; independent upward light, independent downward light, or both
- Color temperature: 2700K-5000K
- Dimming range: 0.1%-100%
| Model | Power | Dimensions |
|---|---|---|
| S407225-20L | up: 15W down: 30W | Fixture: D500mm Canopy: Ф230*40mm, 1.2 m suspension cable, height adjustable |
| S407225-24L | up: 20W down: 36W | Fixture: D600mm Canopy: Ф230*40mm, 1.2 m suspension cable, height adjustable |
| S407225-32L | up: 24W down: 48W | Fixture: D800mm Canopy: Ф230*40mm, 1.2 m suspension cable, height adjustable |
Installation
Professional installation is recommended. Confirm the ceiling or wall structure, power supply, mounting position, suspension length, and local electrical requirements before installation.
What's in the Box
Light fixture and model-specific mounting hardware. Included components may vary by the selected model.
Requirements and Notes
- Indoor use; IP rating is shown in the specifications where provided.
- Requires a compatible Matter controller and Thread Border Router.
- Rotary knob control is not supported.
JINK Bond Evolens Ring Pendant — Frequently Asked Questions
What is JINK Bond Evolens Ring Pendant?
The Evolens Ring Pendant pairs a precisely considered lighting form with JINK Matter over Thread control. Designed for indoor residential and hospitality spaces, it brings architectural presence to the room even when switched off.
How do the listed model specifications compare?
- S407225-20L: Power: up: 15W down: 30W; dimensions: Fixture: D500mm Canopy: Ф230*40mm, 1.2 m suspension cable, height adjustable
- S407225-24L: Power: up: 20W down: 36W; dimensions: Fixture: D600mm Canopy: Ф230*40mm, 1.2 m suspension cable, height adjustable
- S407225-32L: Power: up: 24W down: 48W; dimensions: Fixture: D800mm Canopy: Ф230*40mm, 1.2 m suspension cable, height adjustable
What light output, color temperature and beam options are specified?
- Color rendering: upward CRI ≥90; downward CRI ≥95; independent upward light, independent downward light, or both
- Color temperature: 2700K-5000K
- Dimming range: 0.1%-100%
Use the specification for the selected model. A tunable-white specification alone does not confirm RGB color effects.
What do I need for Matter over Thread setup?
This model is listed as Matter over Thread. You need a compatible Matter controller and Thread border router; one device may provide both roles. Check the selected ecosystem and firmware before purchase. A Wi-Fi router alone is not a substitute for Thread infrastructure.
Which options can I select for JINK Bond Evolens Ring Pendant?
- Model: S407225-20L · S407225-24L · S407225-32L
Use the product selector to confirm the available combination. Separate option lists do not mean every combination is offered.
How should JINK Bond Evolens Ring Pendant be installed?
Professional installation is recommended. Confirm the ceiling or wall structure, power supply, mounting position, suspension length, and local electrical requirements before installation.
Confirm the final mounting position, fixing method and clearance. Have mains wiring and any structural work carried out by a qualified professional.
Does this Matter version support rotary knob control?
No. The product information states that rotary knob control is not supported by this Matter version. Plan control through the compatible Matter ecosystem and the supported functions of the selected model.
What ingress protection is listed?
- Ingress protection: IP20
Confirm the installation environment against the exact model’s rating. Do not assume suitability for rain, wet areas or outdoor exposure.
What is included with JINK Bond Evolens Ring Pendant?
Light fixture and model-specific mounting hardware. Included components may vary by the selected model.
Confirm the package for the selected configuration; separately specified accessories are not automatically included.
What information should I send for product selection or a project quote?
Include JINK Bond Evolens Ring Pendant, the selected configuration, quantity, destination country and installation details. Add the existing equipment model and target control platform where relevant. Request confirmation of compatibility, included components and delivery timing before committing to the project.
