JINK Glide Air Fold Diffuse 6 — Smart Track Light
JINK Glide Air Fold Diffuse 6 — Smart Track Light
JINK Glide Air Fold Diffuse 6: Quick Answer

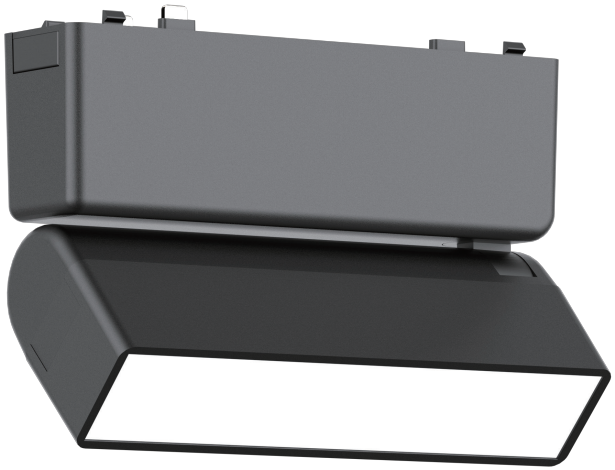

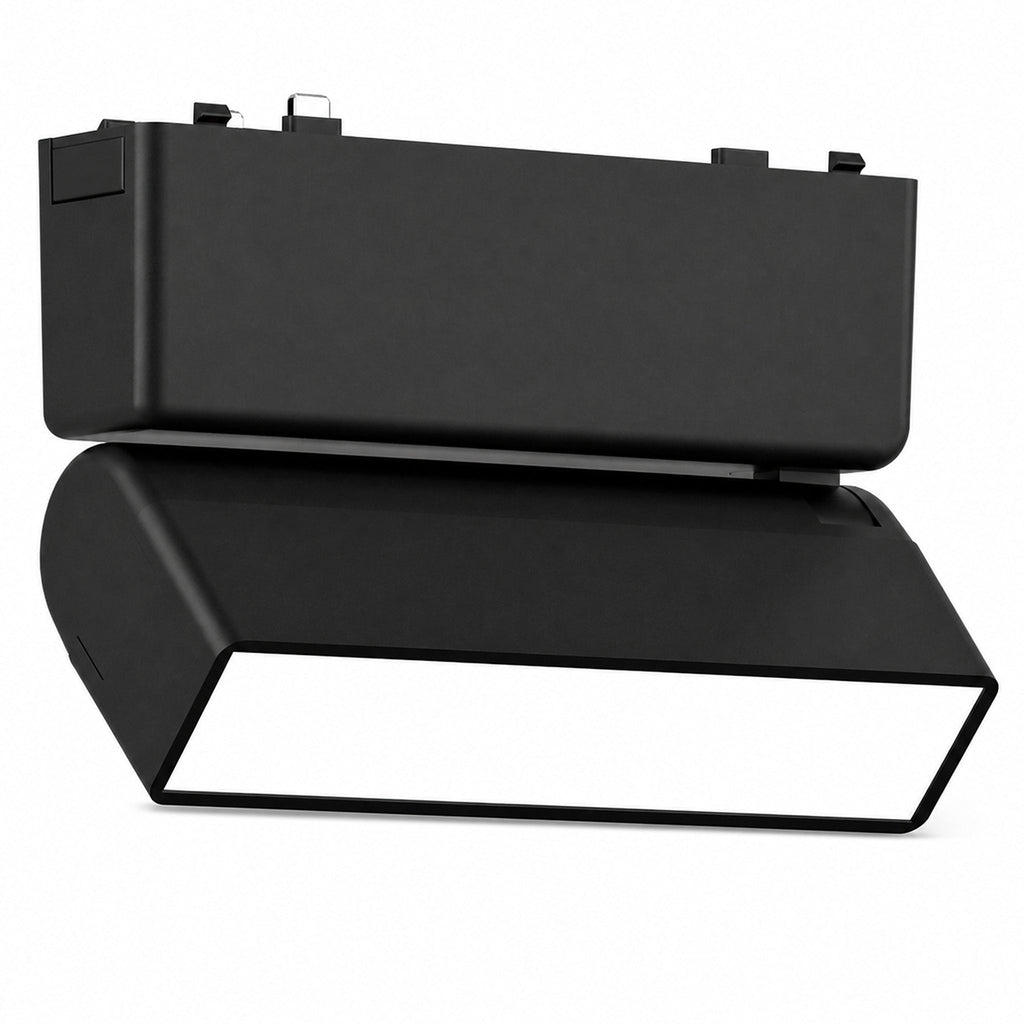

JINK Glide Air Fold Diffuse 6 is a Matter over Thread smart adjustable diffuse light for the JINK Glide Air 48V magnetic track system. Its compact pivoting head directs a broad, soft wash of light where it is needed.
Overview
Fold Diffuse 6 combines a compact 122 mm body with an adjustable hinge and wide 150° distribution. It is designed for soft, flexible illumination in smaller zones, shelves, corridors and display areas.
Highlights
- Matter over Thread: Fast, secure and responsive smart control with a compatible Matter controller and Thread border router.
- Tunable white: Adjust the light from warm 2700K to crisp 6000K for different scenes and times of day.
- High color fidelity: CRI Ra97 supports accurate material and color rendering.
- Magnetic installation: Designed for fast, tool-free placement on the JINK Glide Air low-voltage track.
Tech Specs
| Parameter | Specification |
| Manufacturer model | GK-MT-ZD-6F |
| Fixture type | Compact adjustable diffuse light |
| Dimensions | L122 × W26 × H80 mm |
| Power | 6W |
| Beam angle | 150° |
| Color rendering | CRI Ra97 |
| Color temperature | 2700K–6000K |
| Voltage | 48V DC |
| Control | Matter over Thread |
What's in the Box
JINK Glide Air Fold Diffuse 6 × 1
System Requirements
Requires a compatible JINK Glide Air 48V magnetic track and power supply. Smart control requires a Matter controller and a Thread border router; platform features vary by ecosystem.
Questions about JINK Glide Air Fold Diffuse 6
Which track system does it use?
It is designed for the JINK Glide Air 48V magnetic track system.
Can I change the color temperature?
Yes. The light supports tunable white from 2700K to 6000K.
What should I confirm before ordering?
Confirm the fixture dimensions, beam angle, track compatibility and required Matter ecosystem for your project.
JINK Glide Air Fold Diffuse 6 — Frequently Asked Questions
What is JINK Glide Air Fold Diffuse 6?
JINK Glide Air Fold Diffuse 6 is a Matter over Thread smart adjustable diffuse light for the JINK Glide Air 48V magnetic track system. Its compact pivoting head directs a broad, soft wash of light where it is needed.
What light output, color temperature and beam options are specified?
- Beam angle: 150°
- Color rendering: CRI Ra97
- Color temperature: 2700K–6000K
Use the specification for the selected model. A tunable-white specification alone does not confirm RGB color effects.
What dimensions or fitting size should I plan for?
- Dimensions: L122 × W26 × H80 mm
Match the selected model to the installation drawing and available clearance before ordering.
What electrical ratings should my installer check?
- Power: 6W
- Voltage: 48V DC
The listed values do not replace the selected model’s wiring diagram. Confirm the supply, connected load and installation requirements before energizing the product.
What do I need for Matter over Thread setup?
This model is listed as Matter over Thread. You need a compatible Matter controller and Thread border router; one device may provide both roles. Check the selected ecosystem and firmware before purchase. A Wi-Fi router alone is not a substitute for Thread infrastructure.
Which options can I select for JINK Glide Air Fold Diffuse 6?
- Color: Black · White
Use the product selector to confirm the available combination. Separate option lists do not mean every combination is offered.
What should I check before installation?
Confirm the selected fixture’s mounting method, available clearance, cutout where relevant, power supply, driver and beam direction. Have mains wiring assessed by a qualified electrician before installation.
Can I use it outdoors or in a wet area?
Outdoor or wet-area suitability is not established by the product name. Confirm a model-specific ingress-protection rating and approved installation conditions before selecting it for those locations.
What is included with JINK Glide Air Fold Diffuse 6?
JINK Glide Air Fold Diffuse 6 × 1
Confirm the package for the selected configuration; separately specified accessories are not automatically included.
What information should I send for product selection or a project quote?
Include JINK Glide Air Fold Diffuse 6, the selected configuration, quantity, destination country and installation details. Add the existing equipment model and target control platform where relevant. Request confirmation of compatibility, included components and delivery timing before committing to the project.
