JINK Plane 04 — Matter over Thread Four-Cell Surface Light
JINK Plane 04 — Matter over Thread Four-Cell Surface Light
JINK Plane 04 at a glance

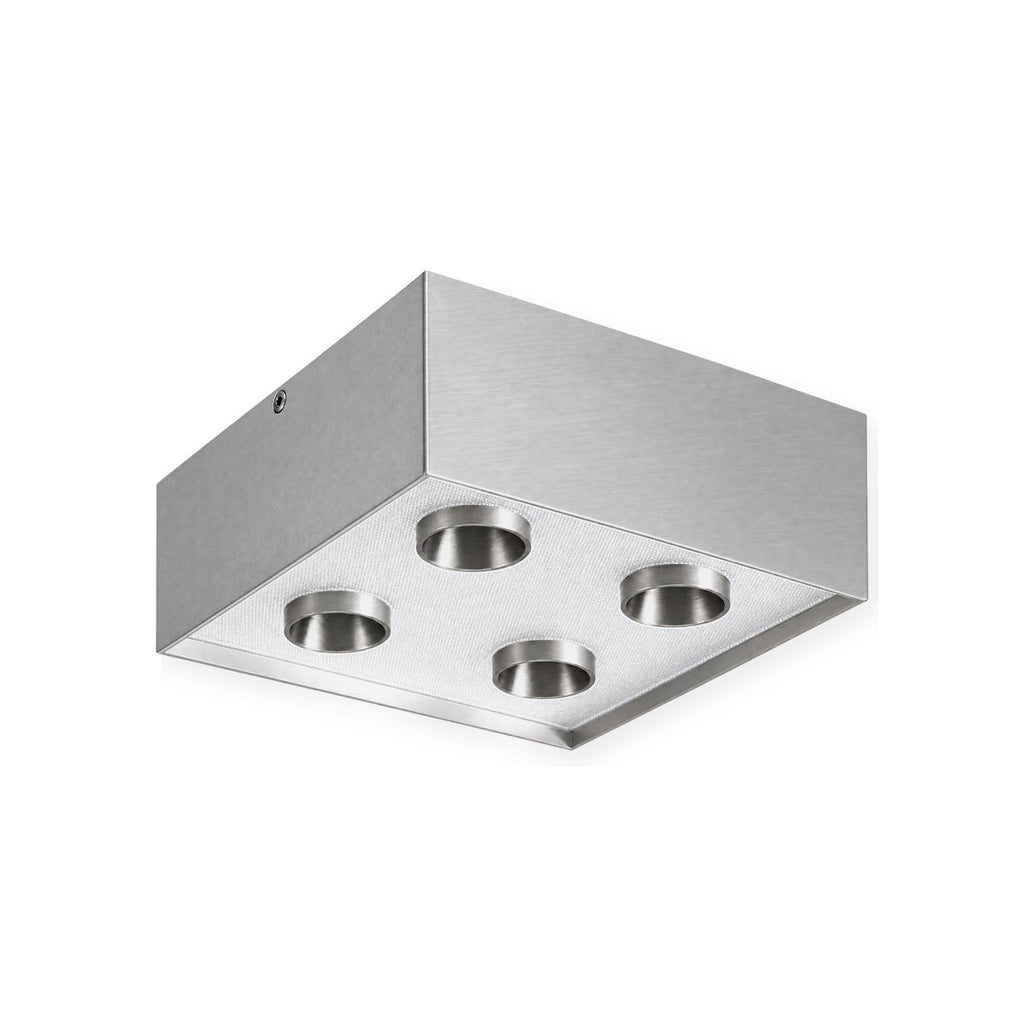

JINK Plane 04 — a square four-cell ceiling light that turns concentrated beams into a disciplined grid.
- Power: 40W
- Light quality: Ra98; tunable white 2700–6500K
- Dimensions: W200 × D200 × H82 mm
JINK Plane 04
A square four-cell ceiling light that turns concentrated beams into a disciplined grid.
Key specifications
- Power: 40W
- Light quality: Ra98; tunable white 2700–6500K
- Protocol: Matter over Thread
- Dimensions: W200 × D200 × H82 mm
- Installation: Surface-mounted; four-cell optics
Quiet intelligence
Designed for architectural spaces where technology should recede into the background. No dedicated JINK app is required. Use a compatible Matter platform such as Apple Home, Aqara Home or Home Assistant.
System requirement: A compatible Matter controller and Thread border router are required. Platform features may vary.

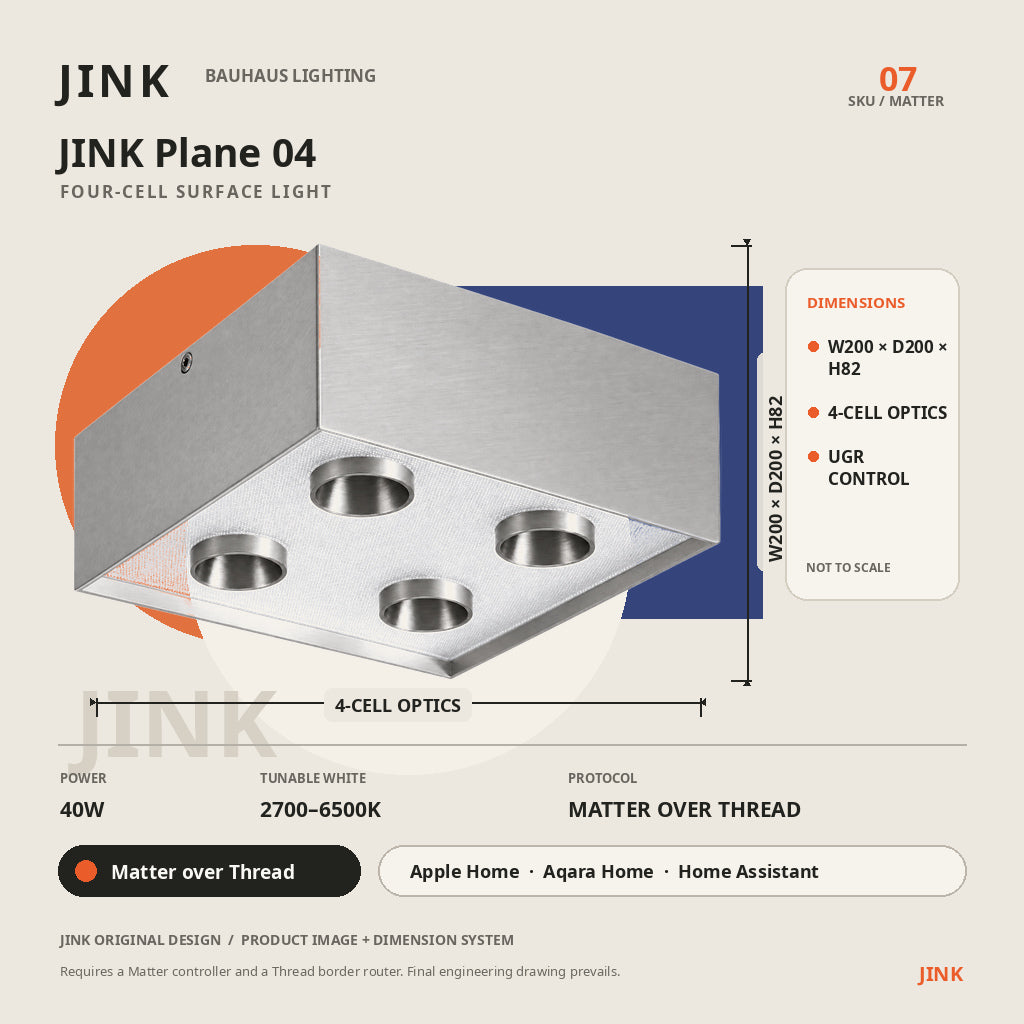

Dimensions shown are not to scale. Final engineering drawings and installation conditions prevail.
JINK Plane 04 — Frequently Asked Questions
What is JINK Plane 04?
JINK Plane 04 — a square four-cell ceiling light that turns concentrated beams into a disciplined grid.
What light output, color temperature and beam options are specified?
- Light quality: Ra98; tunable white 2700–6500K
Use the specification for the selected model. A tunable-white specification alone does not confirm RGB color effects.
What dimensions or fitting size should I plan for?
- Dimensions: W200 × D200 × H82 mm
Match the selected model to the installation drawing and available clearance before ordering.
What electrical ratings should my installer check?
- Power: 40W
The listed values do not replace the selected model’s wiring diagram. Confirm the supply, connected load and installation requirements before energizing the product.
What do I need for Matter over Thread setup?
This model is listed as Matter over Thread. You need a compatible Matter controller and Thread border router; one device may provide both roles. Check the selected ecosystem and firmware before purchase. A Wi-Fi router alone is not a substitute for Thread infrastructure.
Do I need a dedicated JINK app?
No dedicated JINK app is required according to this product’s setup information. Use a compatible Matter platform and confirm the functions it exposes for the selected model. The Matter controller and any required Thread border router are still needed.
How should JINK Plane 04 be installed?
- Installation: Surface-mounted; four-cell optics
Confirm the final mounting position, fixing method and clearance. Have mains wiring and any structural work carried out by a qualified professional.
Can I use it outdoors or in a wet area?
Outdoor or wet-area suitability is not established by the product name. Confirm a model-specific ingress-protection rating and approved installation conditions before selecting it for those locations.
What information should I send for product selection or a project quote?
Include JINK Plane 04, the selected configuration, quantity, destination country and installation details. Add the existing equipment model and target control platform where relevant. Request confirmation of compatibility, included components and delivery timing before committing to the project.
