JINK Flux Pro — Matter Smart Lighting Driver
JINK Flux Pro — Matter Smart Lighting Driver

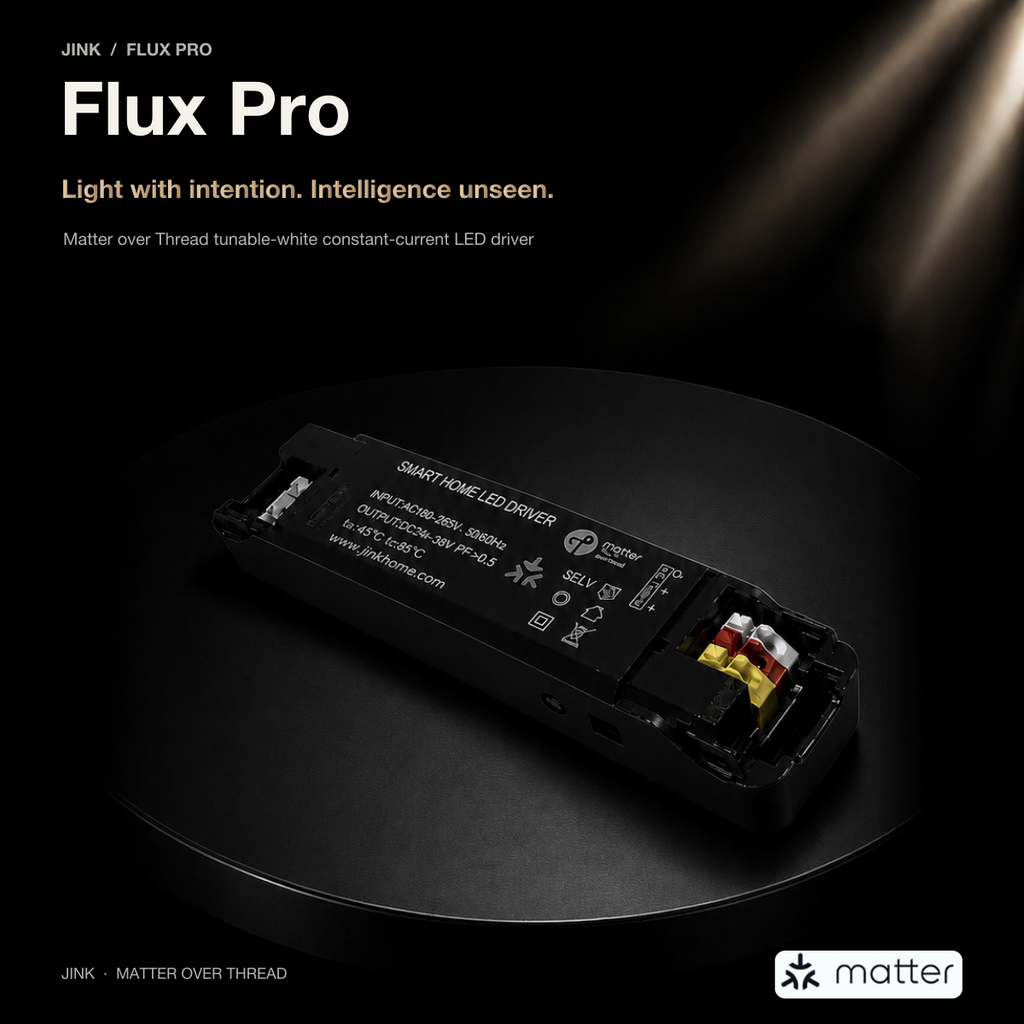

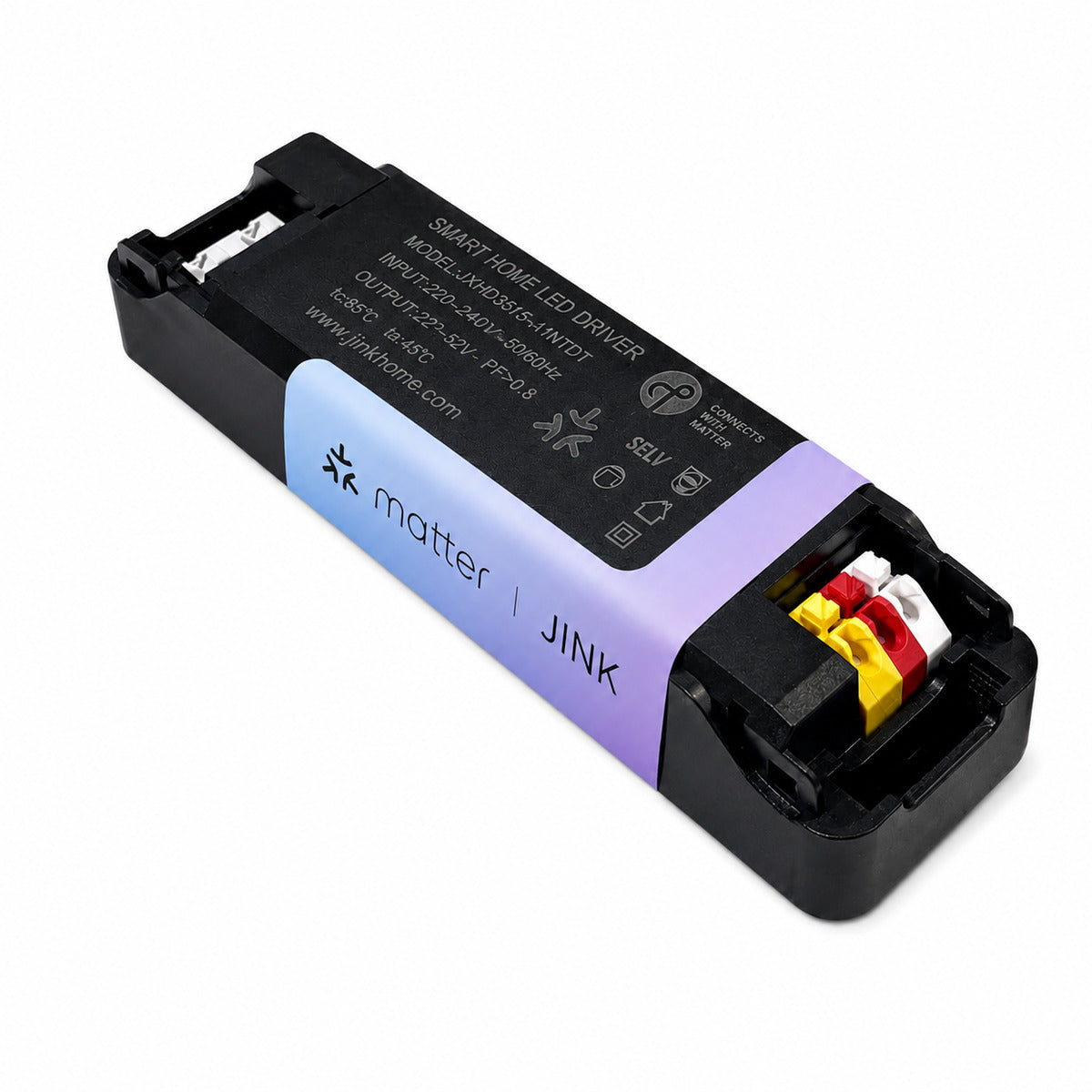

JINK Flux Pro at a glance
Starting at just 21mm, the Flux Pro is engineered to vanish. It slips into the narrowest ceiling gaps and track slots, ensuring your architectural design remains pristine, leaving nothing but pure, brilliant light.
- Input Voltage: AC 180V – 265V, 50/60Hz
- Output Voltage: DC 24V – 38V
Overview
Starting at just 21mm, the Flux Pro is engineered to vanish. It slips into the narrowest ceiling gaps and track slots, ensuring your architectural design remains pristine, leaving nothing but pure, brilliant light.
Highlights
Powered by advanced circuitry, it delivers a rock-solid 36V DC output across five tailored wattages. Experience silky-smooth dimming and a completely flicker-free environment that is as easy on the eyes as it is reliable.

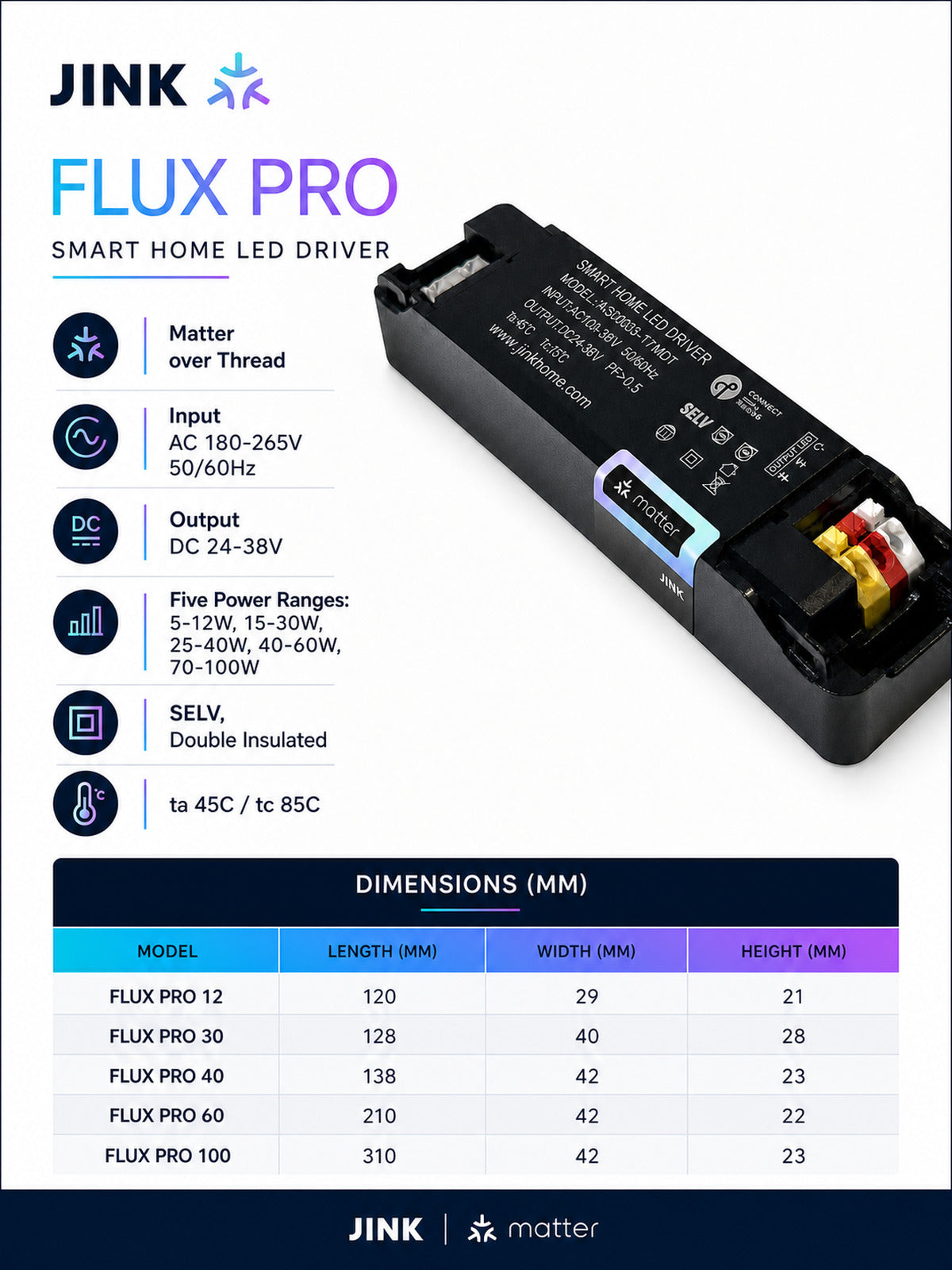

Tech Specs
| Technical Specifications | Details |
| Connectivity | Matter over Thread |
| Series | JINK Flux Pro |
| Input Voltage | AC 180V – 265V, 50/60Hz |
| Output Voltage | DC 24V – 38V |
| Power Factor (PF) | > 0.5 |
| Safety Standard | SELV, Double Insulated |
| Operating Temperature | ta: 45°C / tc: 85°C |
| Wireless Protocol | Matter over Thread |
| System Requirements | Matter-compatible Controller (Thread Border Router) |
What’s in the Box
-
5-12W: 120 × 29 × 21 mm
-
15-30W: 128 × 40 × 28 mm
-
25-40W: 138 × 42 × 23 mm
-
40-60W: 210 × 42 × 22 mm
- 70-100W: 310 × 42 × 23 mm
System Requirements
Operating System: Minimun required iOS 18.5 , watchOS 11.5

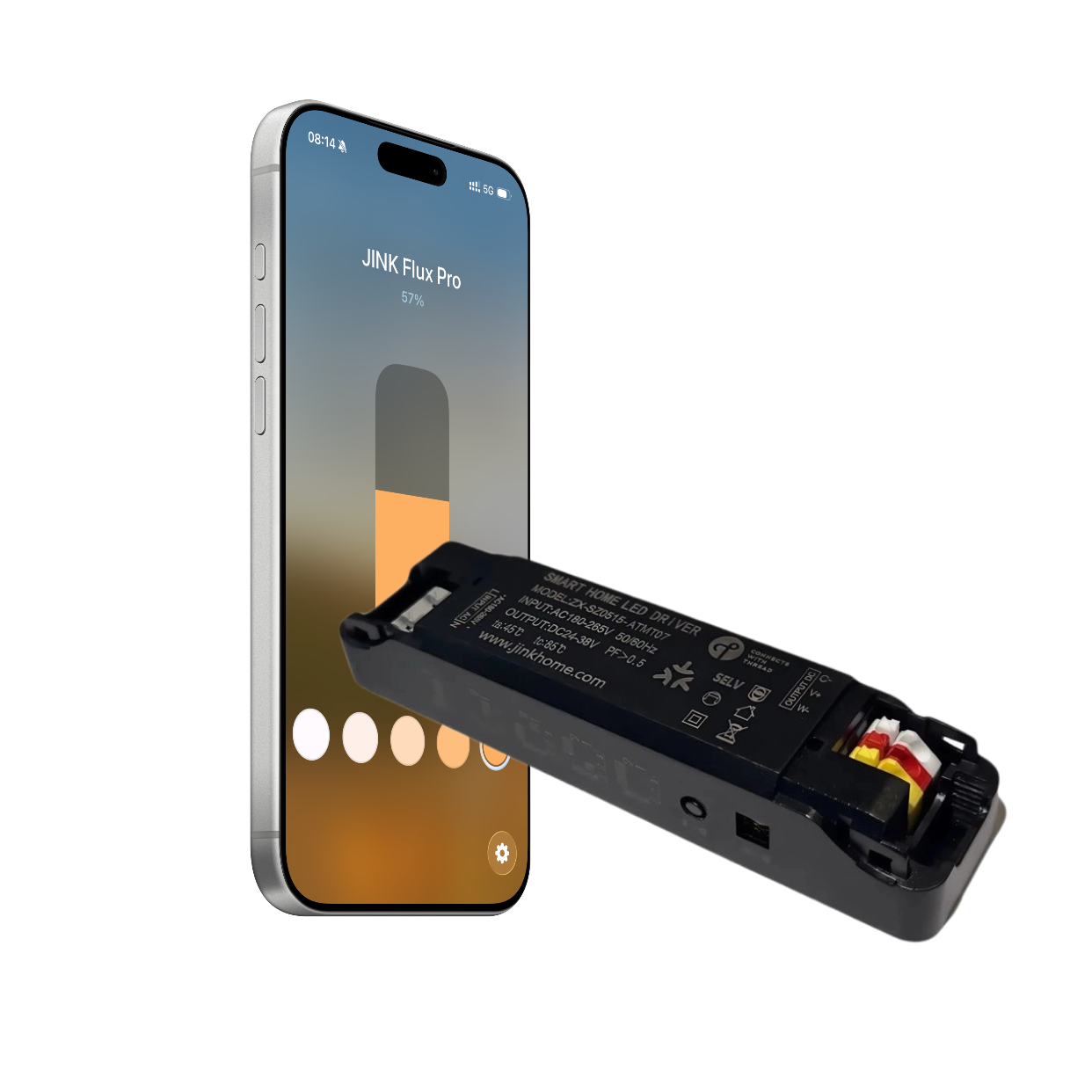

Featured App

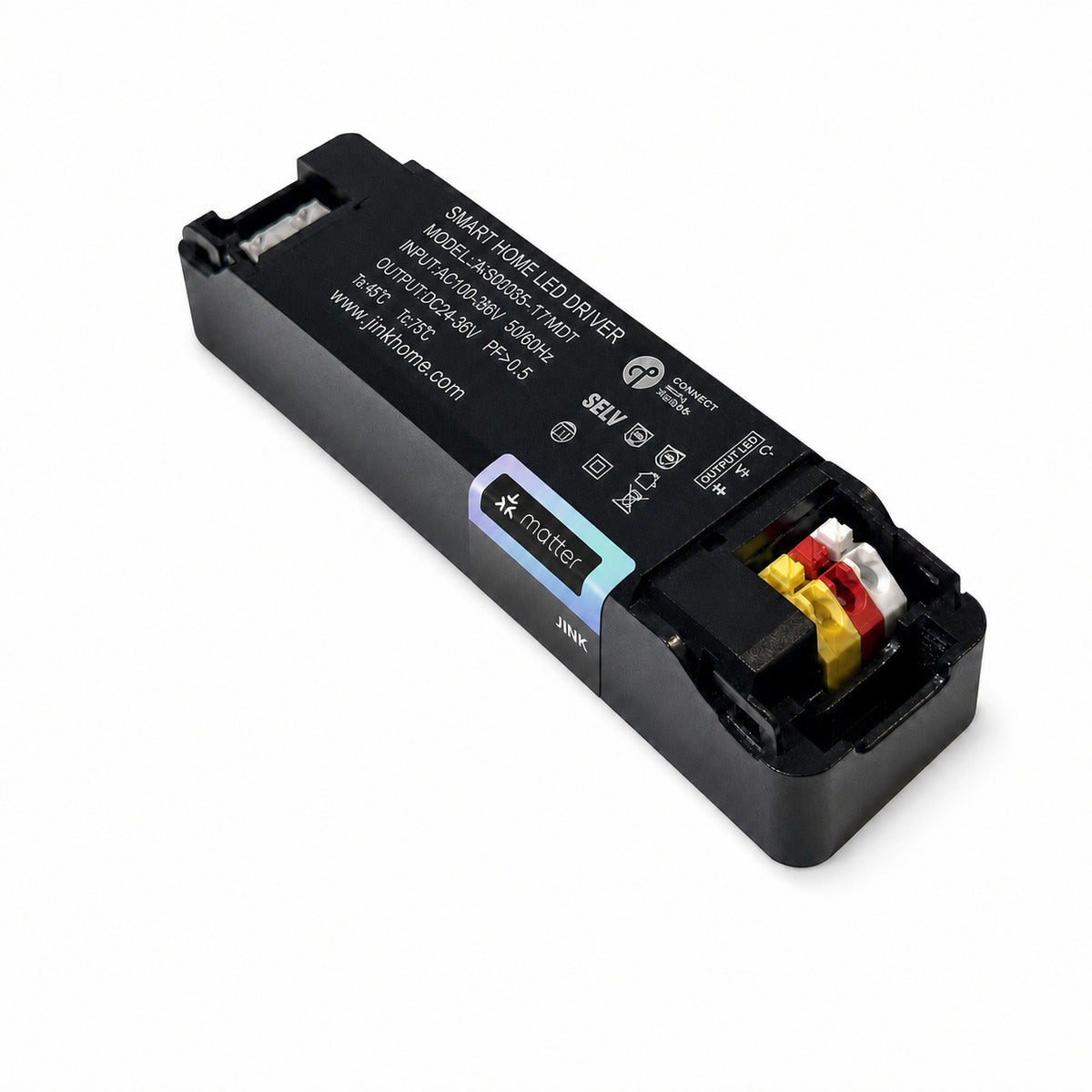

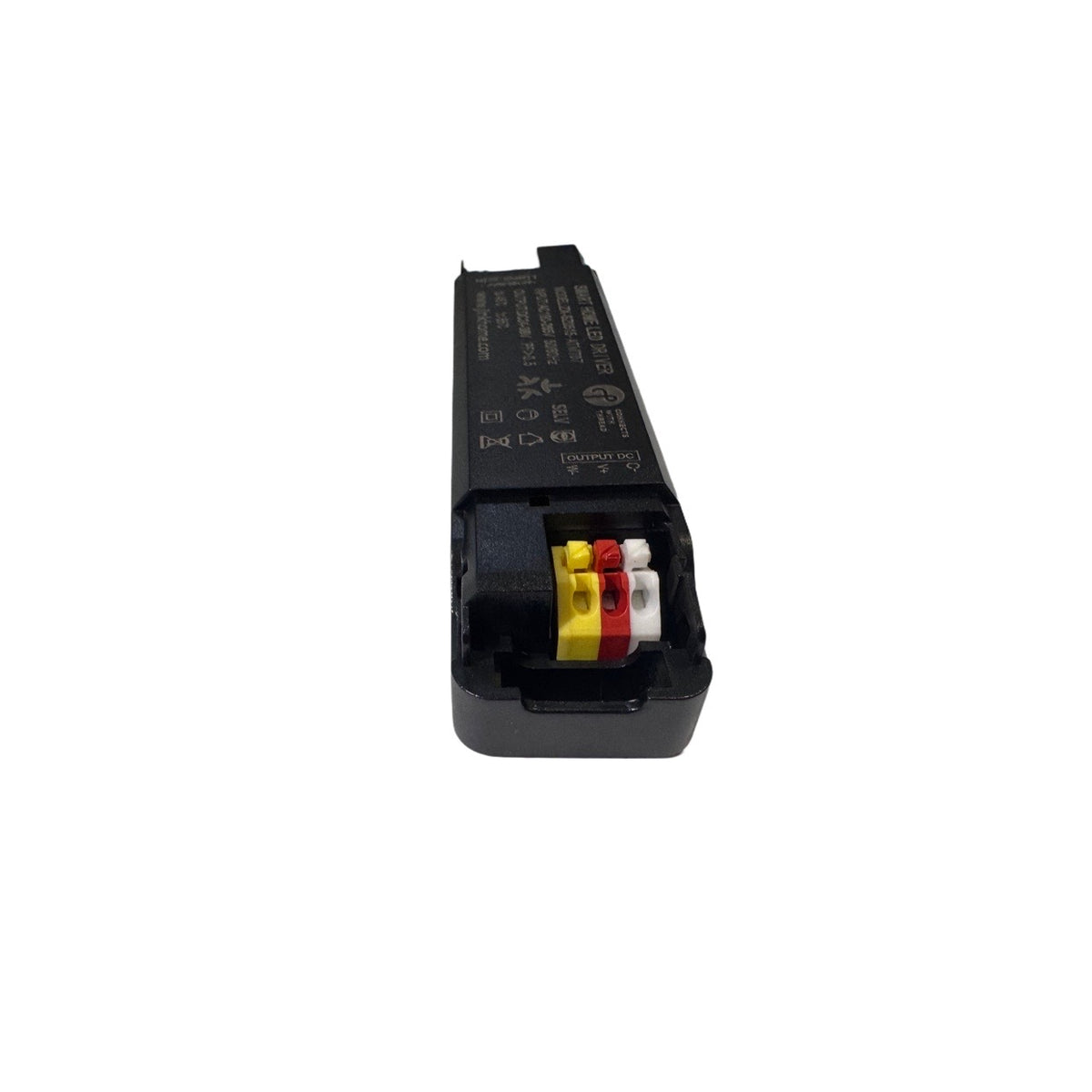

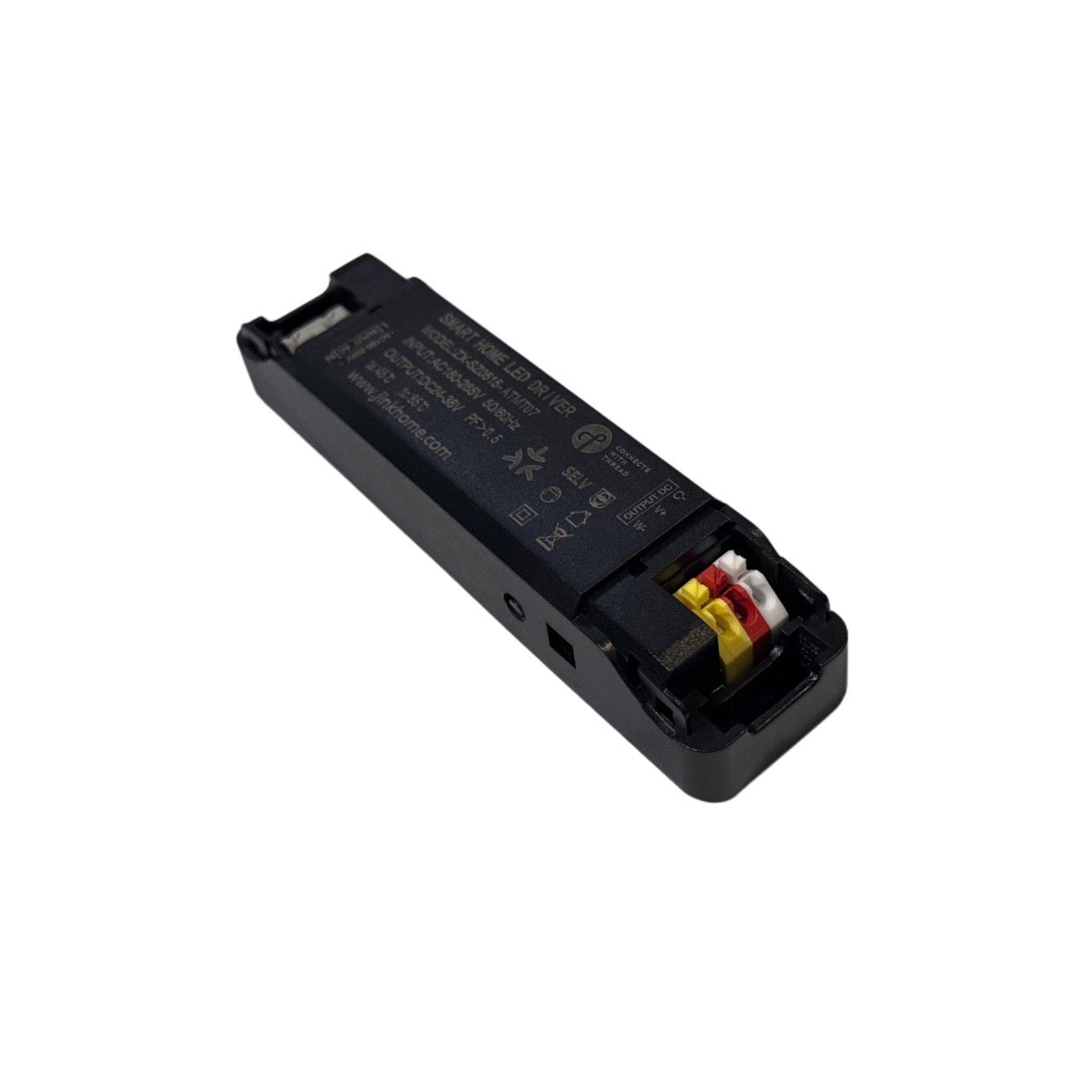

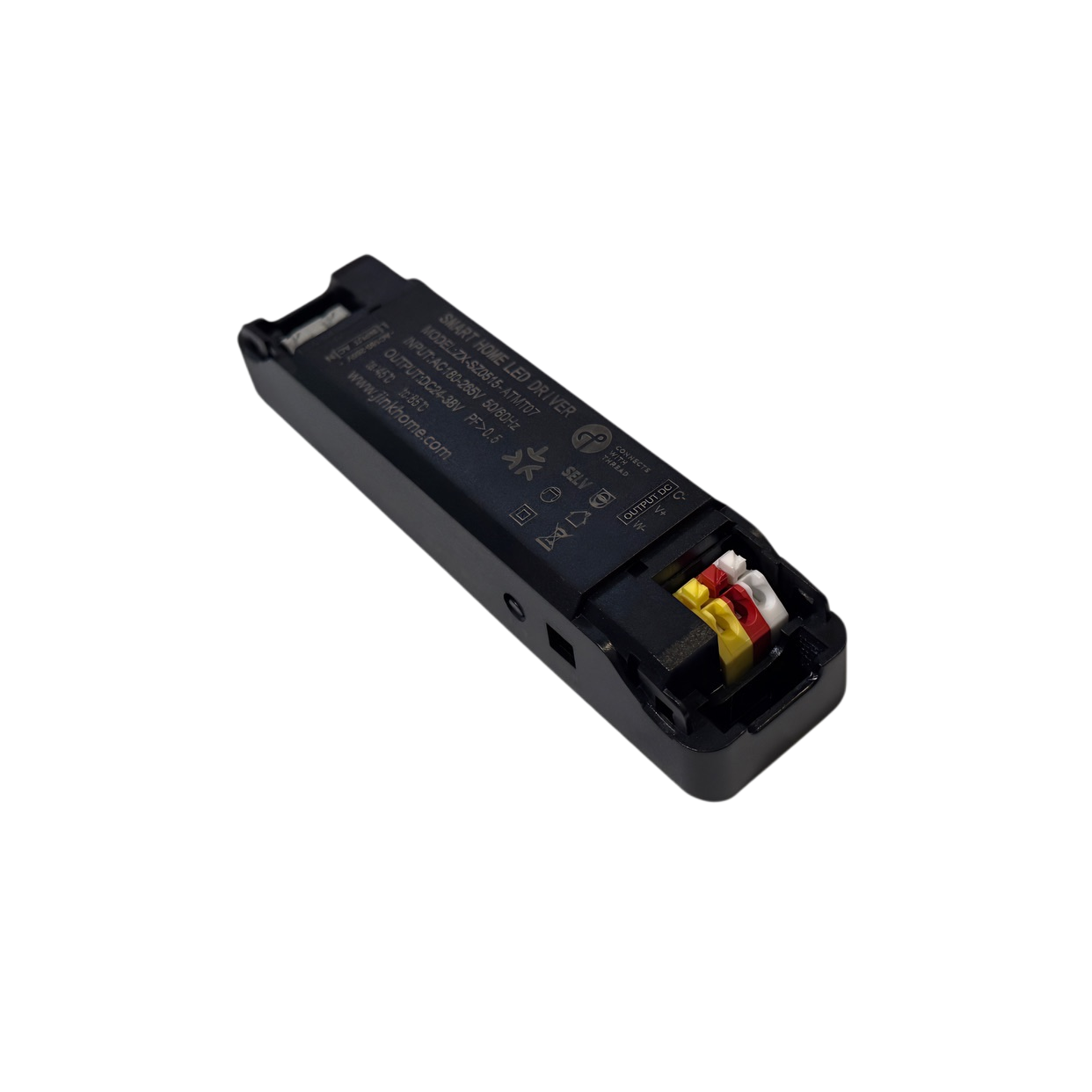

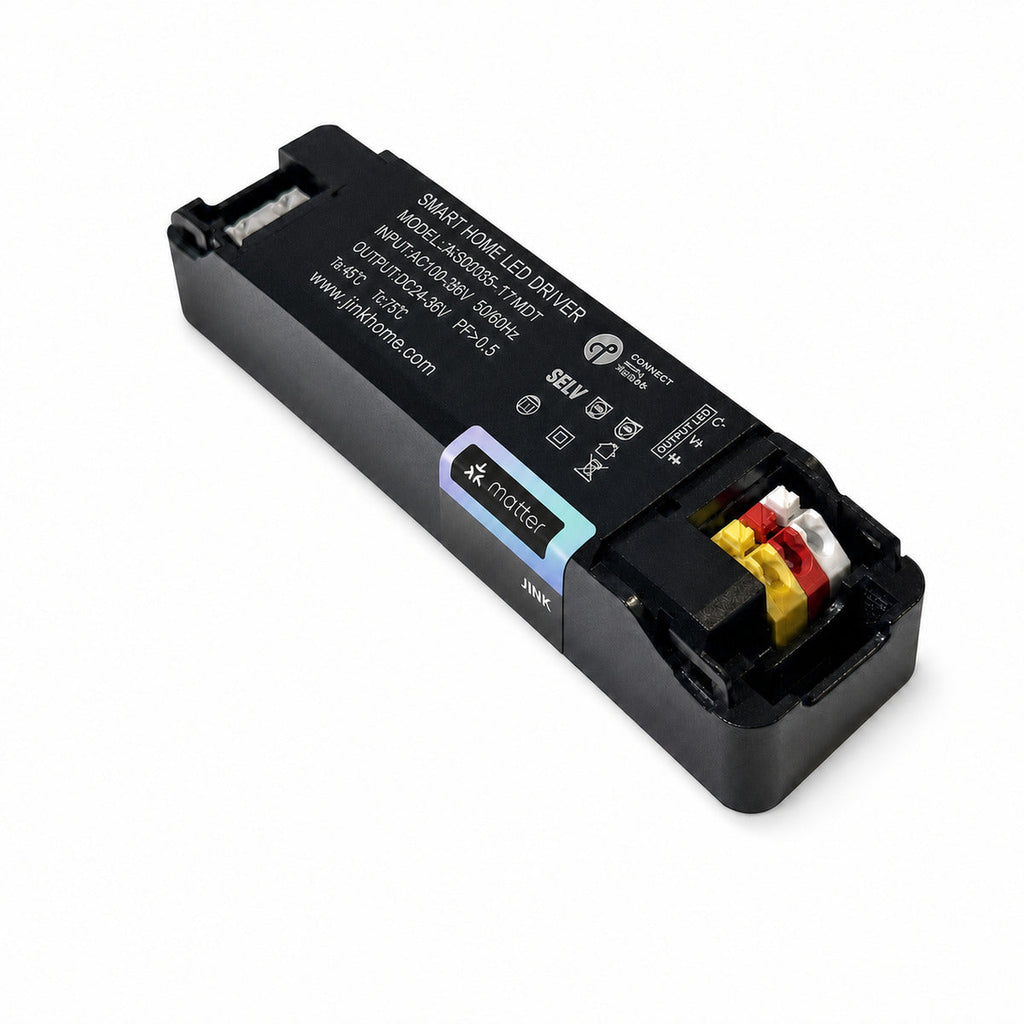

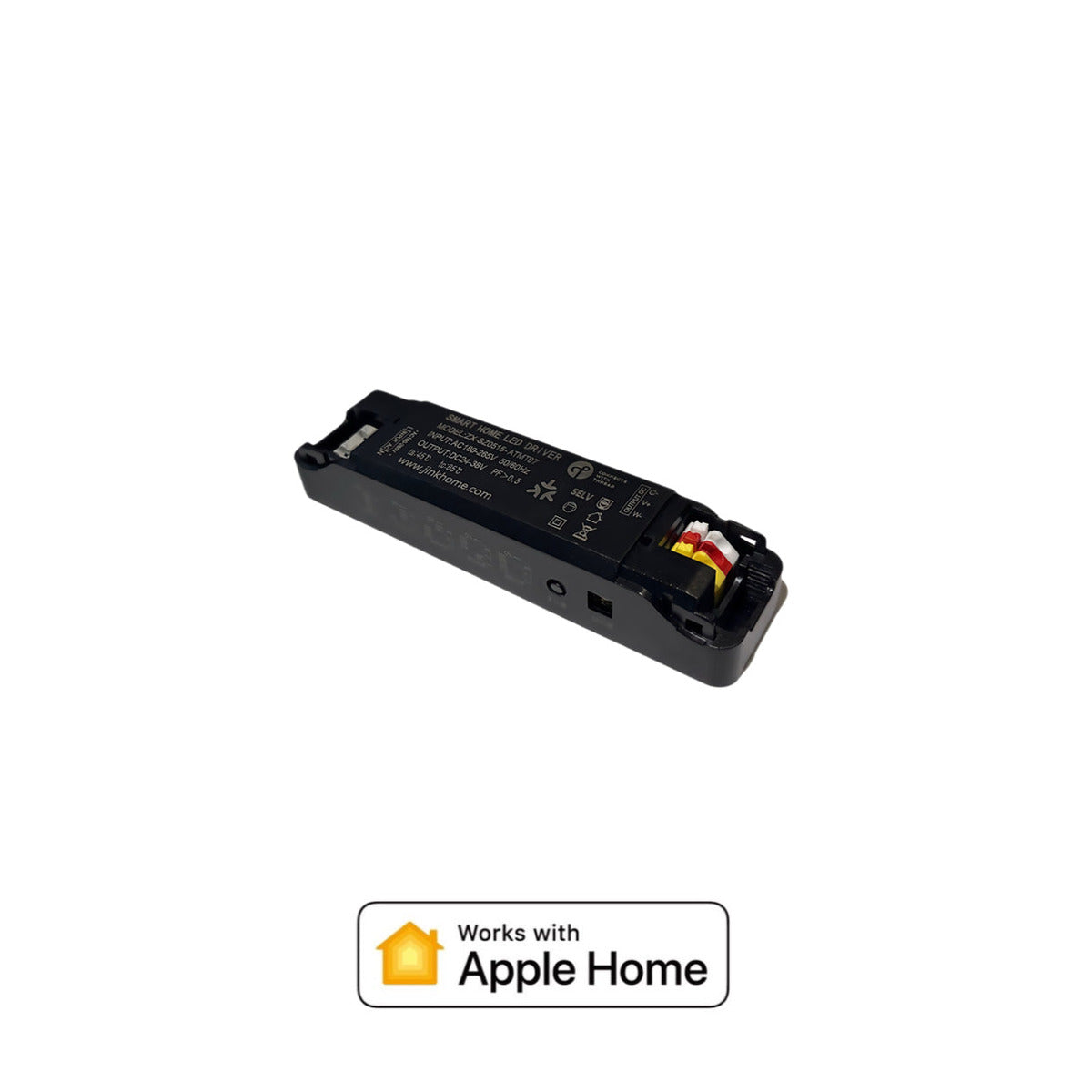

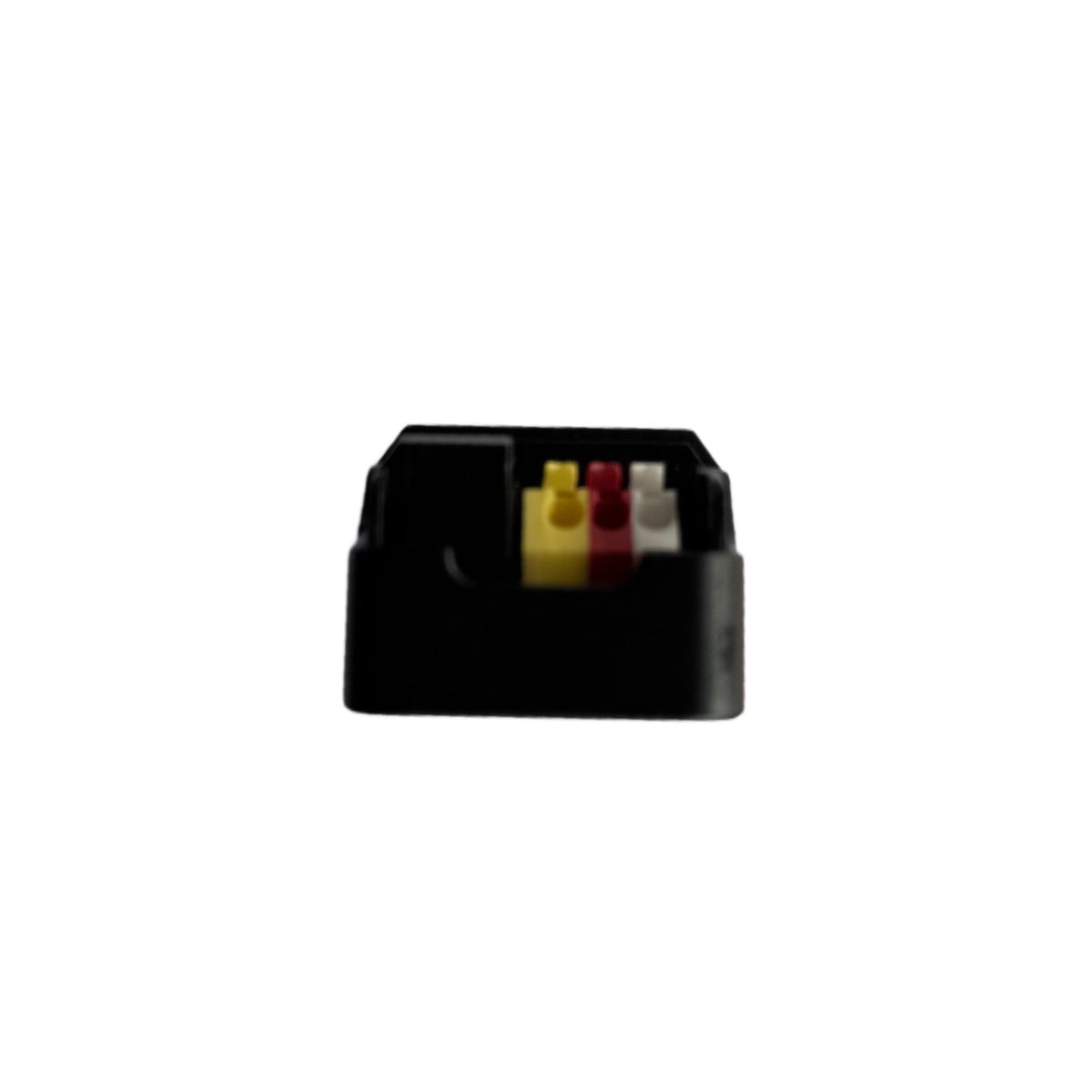

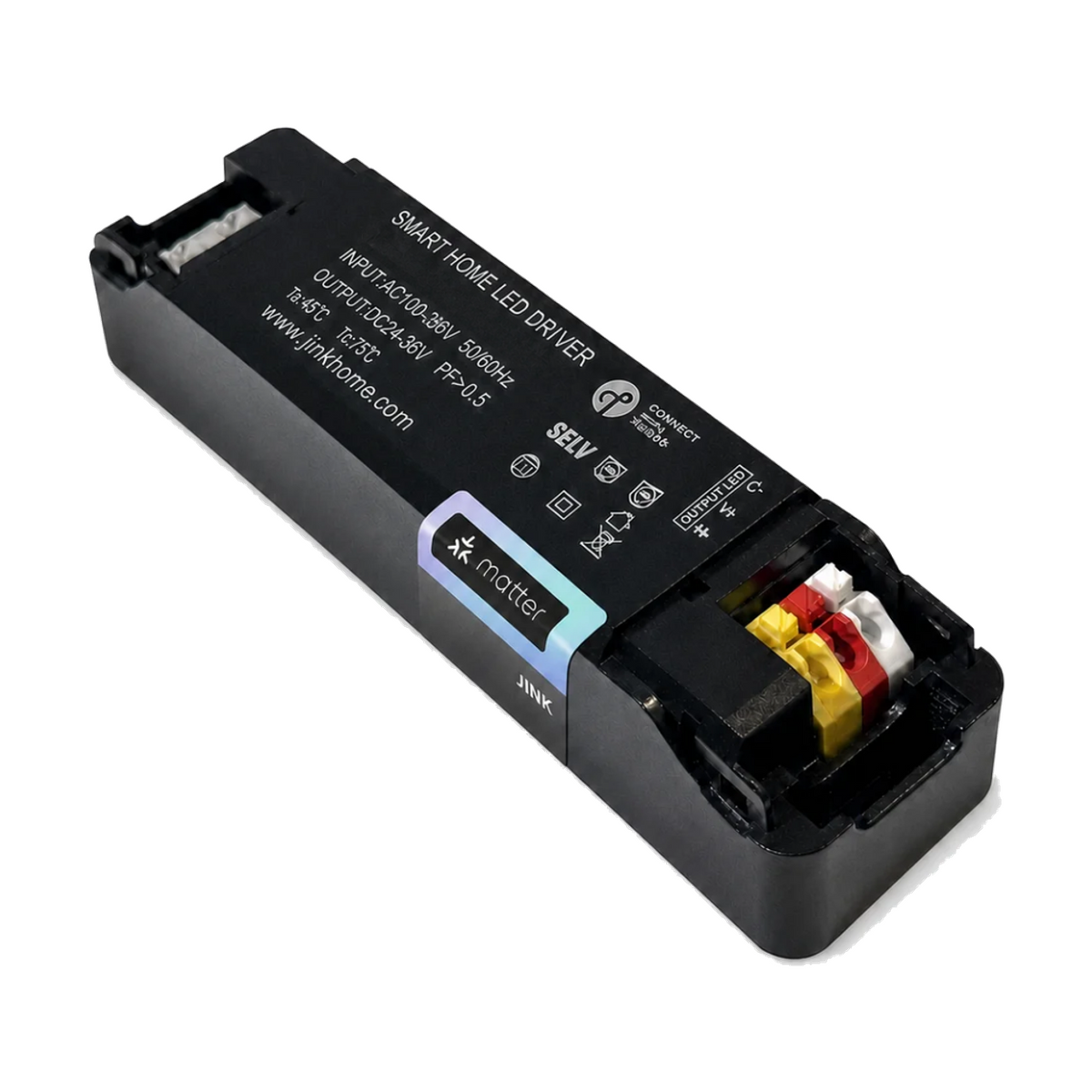

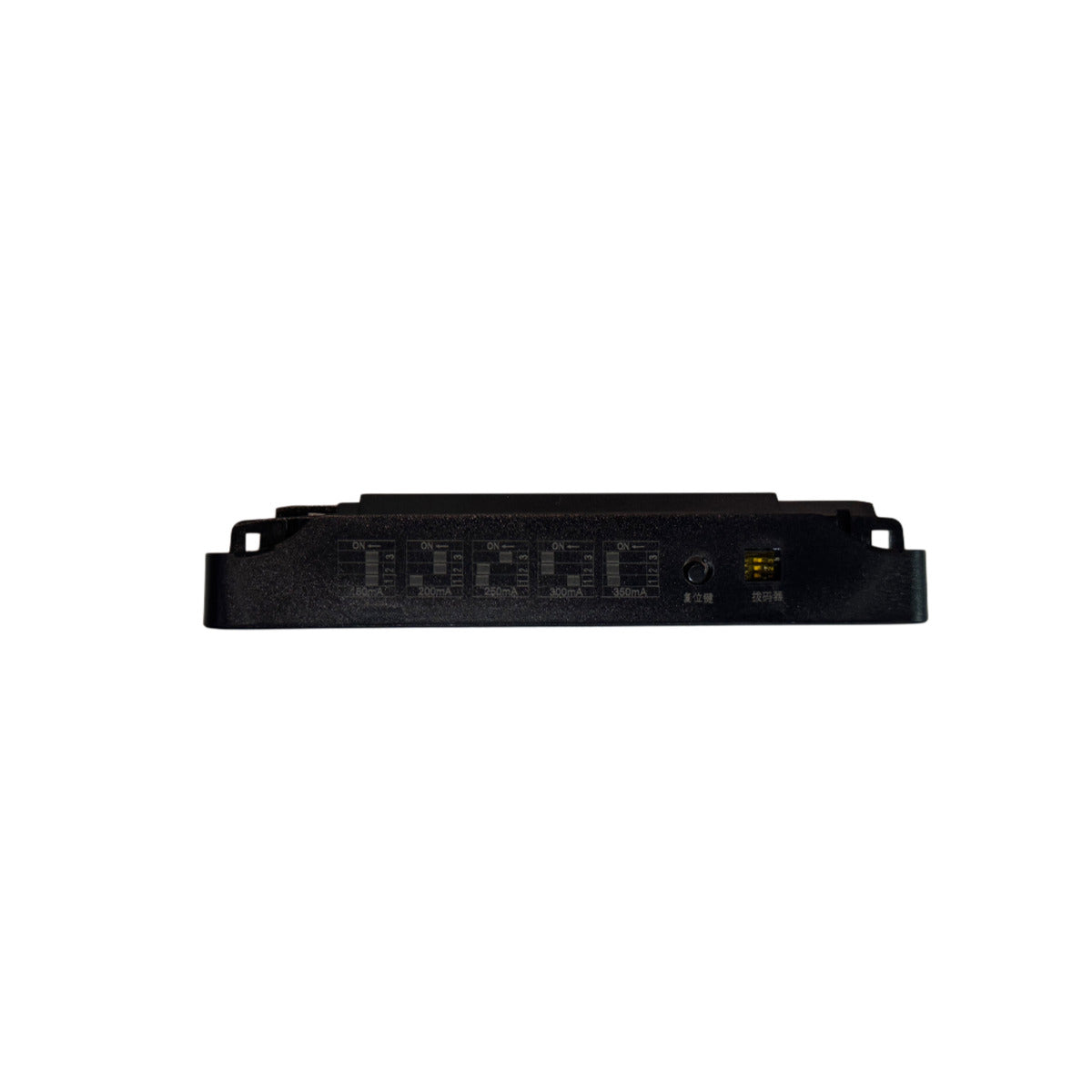

The product photography and detailed specifications below feature the 5–12 W version of JINK Flux Pro. For other versions, refer to the wattage selector and the corresponding dimensions above.

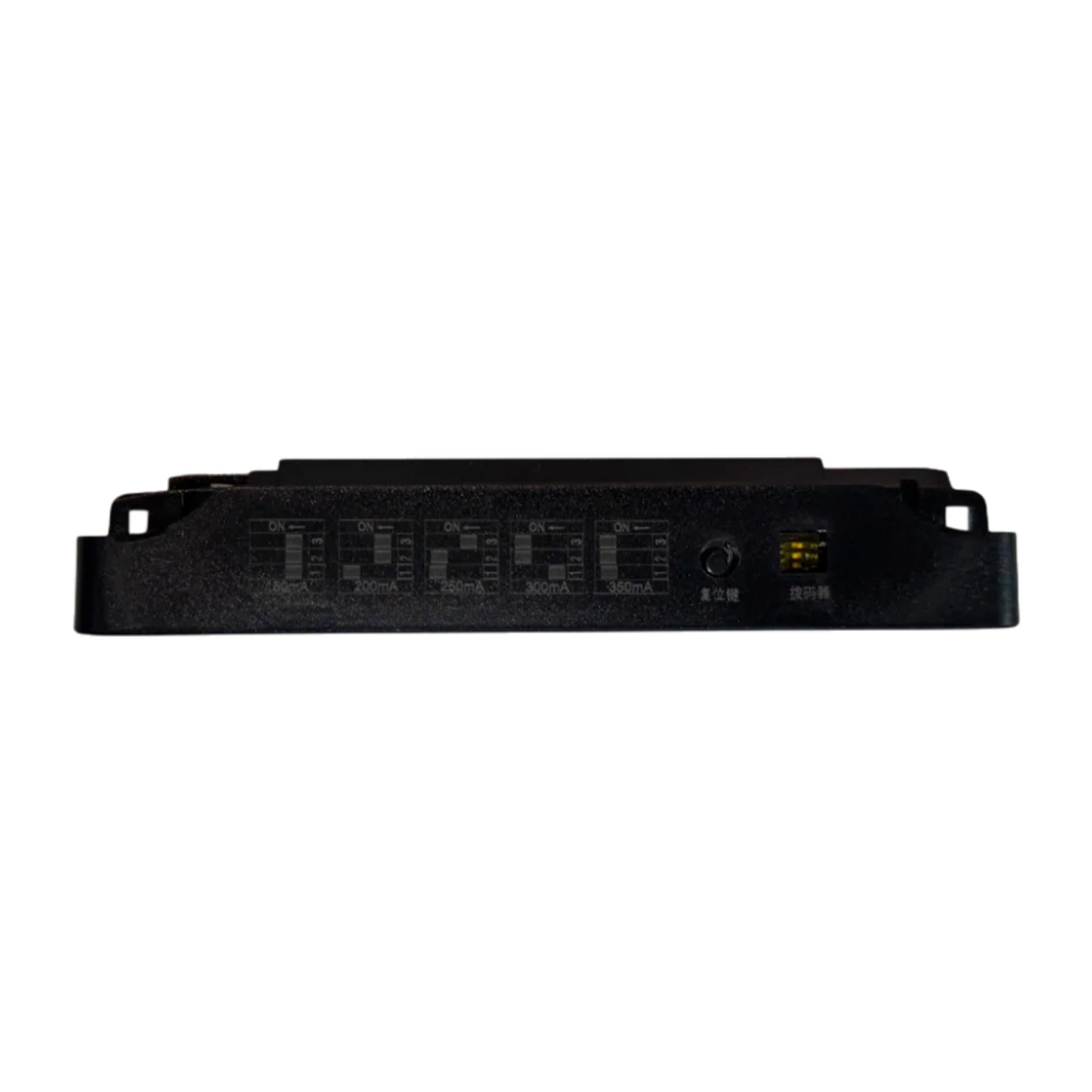

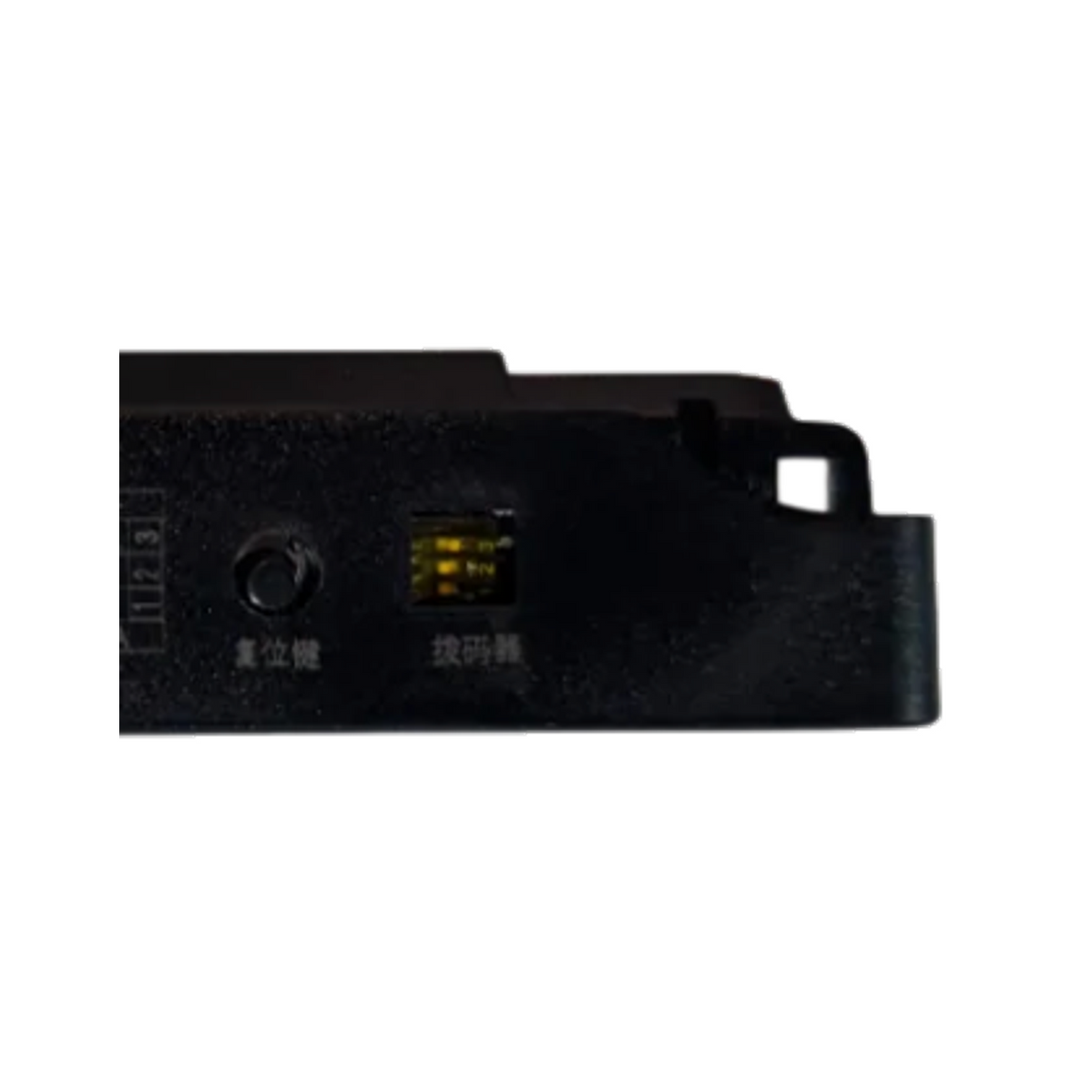

Factory reset: press the side button 7 times.
JINK Flux Pro — Frequently Asked Questions
What is JINK Flux Pro?
Starting at just 21mm, the Flux Pro is engineered to vanish. It slips into the narrowest ceiling gaps and track slots, ensuring your architectural design remains pristine, leaving nothing but pure, brilliant light.
What electrical ratings should my installer check?
- Input Voltage: AC 180V – 265V, 50/60Hz
- Output Voltage: DC 24V – 38V
- Power Factor (PF): > 0.5
The listed values do not replace the selected model’s wiring diagram. Confirm the supply, connected load and installation requirements before energizing the product.
What do I need for Matter over Thread setup?
This model is listed as Matter over Thread. You need a compatible Matter controller and Thread border router; one device may provide both roles. Check the selected ecosystem and firmware before purchase. A Wi-Fi router alone is not a substitute for Thread infrastructure.
Which options can I select for JINK Flux Pro?
- Wattage: 5-12W(36V)120*29*21Mm · 15-30W(36V)128*40*28Mm · 25-40W(36V)138*42*23Mm · 40-60W(36V)210*42*22Mm · 70-100W(36V)310*42*23Mm
Use the product selector to confirm the available combination. Separate option lists do not mean every combination is offered.
What should I check before installation?
Confirm the selected fixture’s mounting method, available clearance, cutout where relevant, power supply, driver and beam direction. Have mains wiring assessed by a qualified electrician before installation.
Can I use it outdoors or in a wet area?
Outdoor or wet-area suitability is not established by the product name. Confirm a model-specific ingress-protection rating and approved installation conditions before selecting it for those locations.
What is included with JINK Flux Pro?
5-12W: 120 × 29 × 21 mm
15-30W: 128 × 40 × 28 mm
25-40W: 138 × 42 × 23 mm
40-60W: 210 × 42 × 22 mm
70-100W: 310 × 42 × 23 mm
Confirm the package for the selected configuration; separately specified accessories are not automatically included.
What information should I send for product selection or a project quote?
Include JINK Flux Pro, the selected configuration, quantity, destination country and installation details. Add the existing equipment model and target control platform where relevant. Request confirmation of compatibility, included components and delivery timing before committing to the project.
