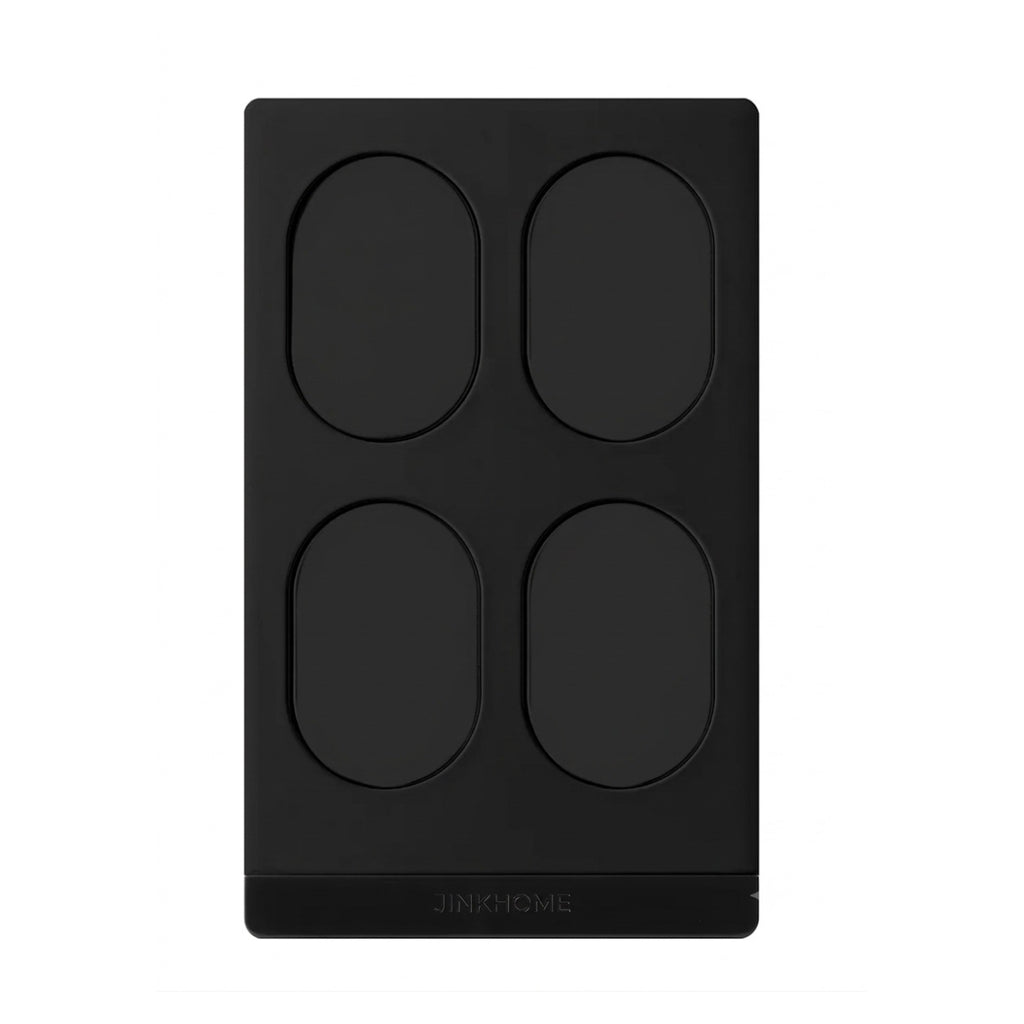

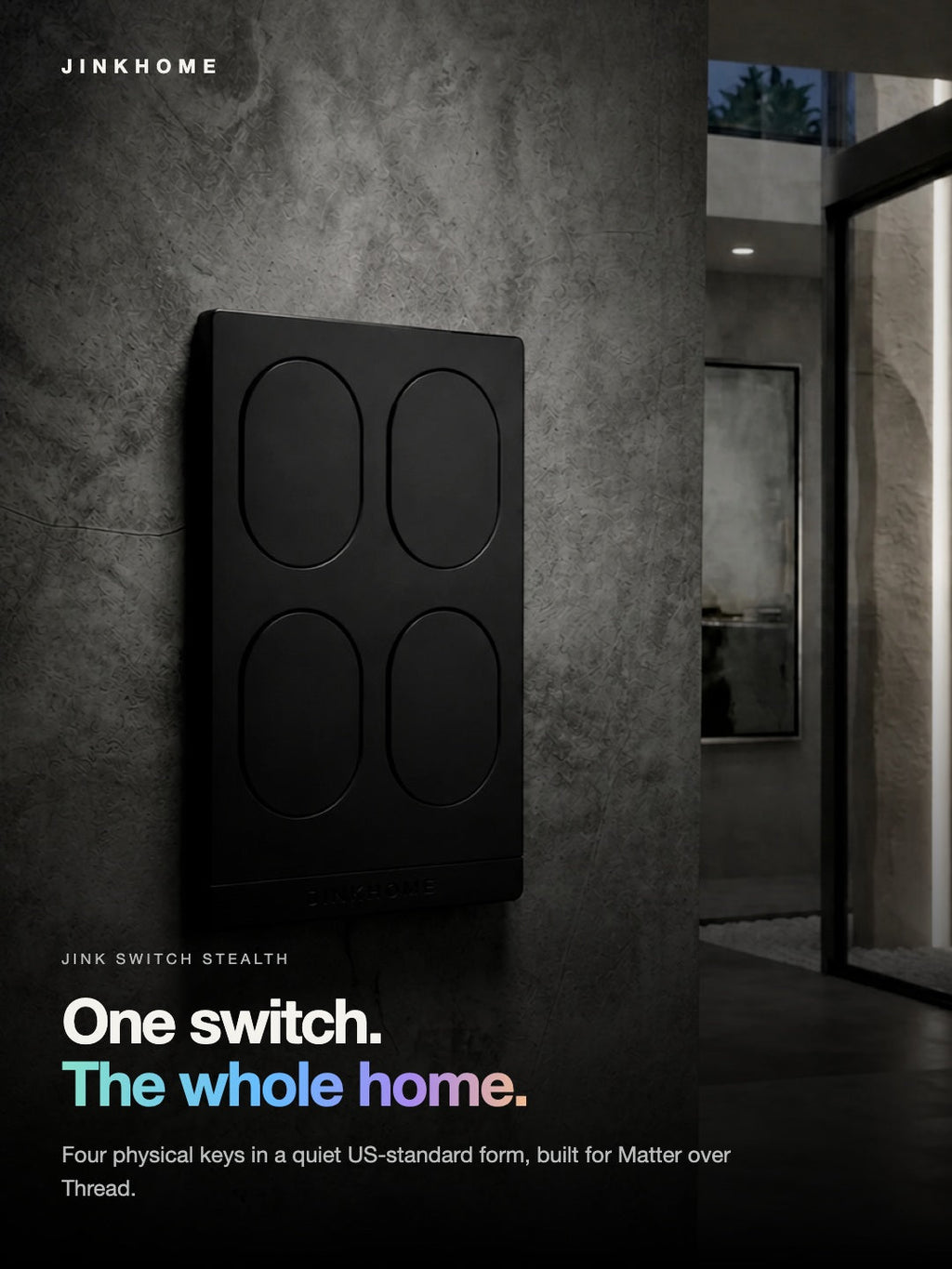

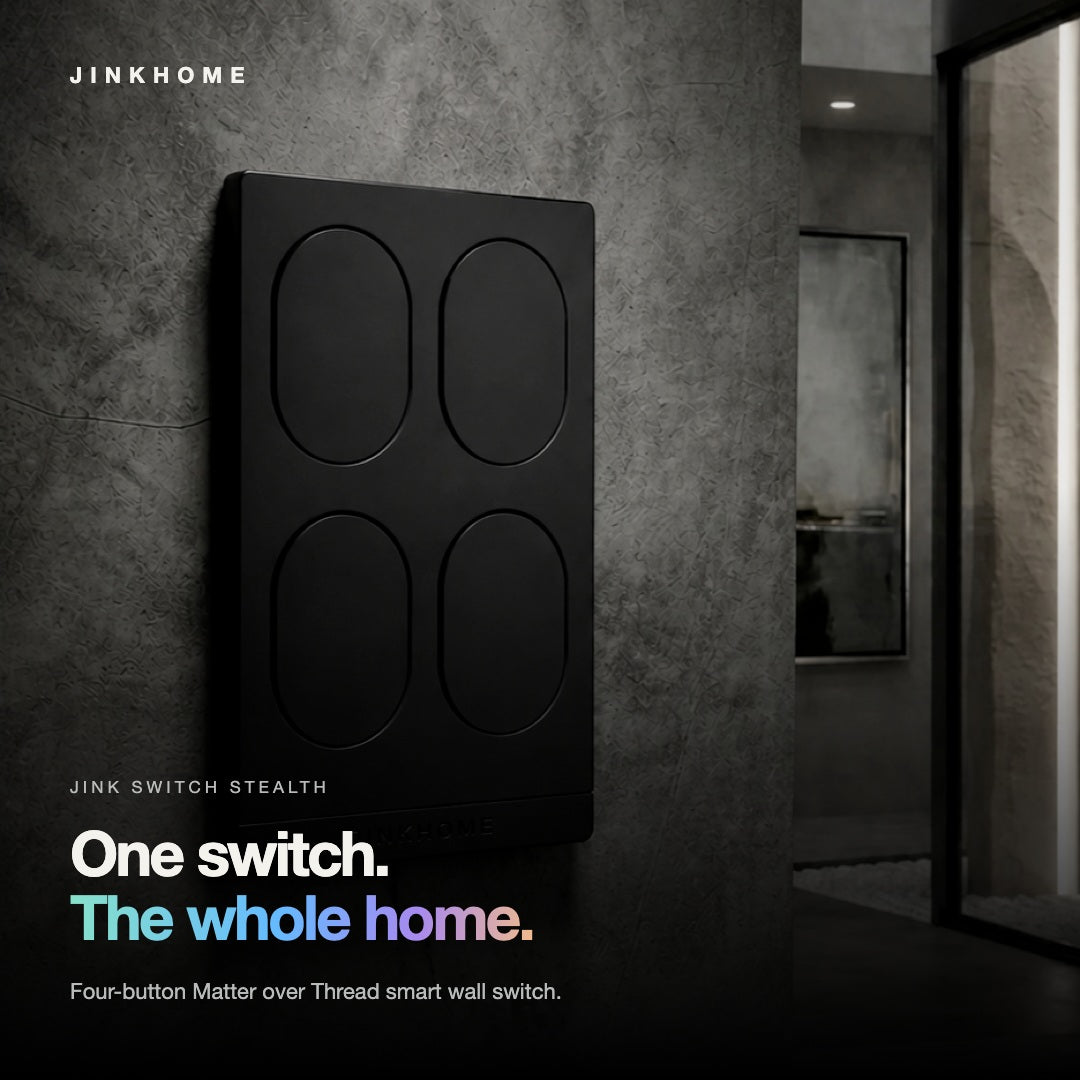

A four-button smart wall switch designed to sit quietly within modern interiors. Its US-style 70 × 115 mm faceplate combines a precise 2 × 2 tactile layout with subtle bottom JINKHOME engraving and no bottom-edge illumination.

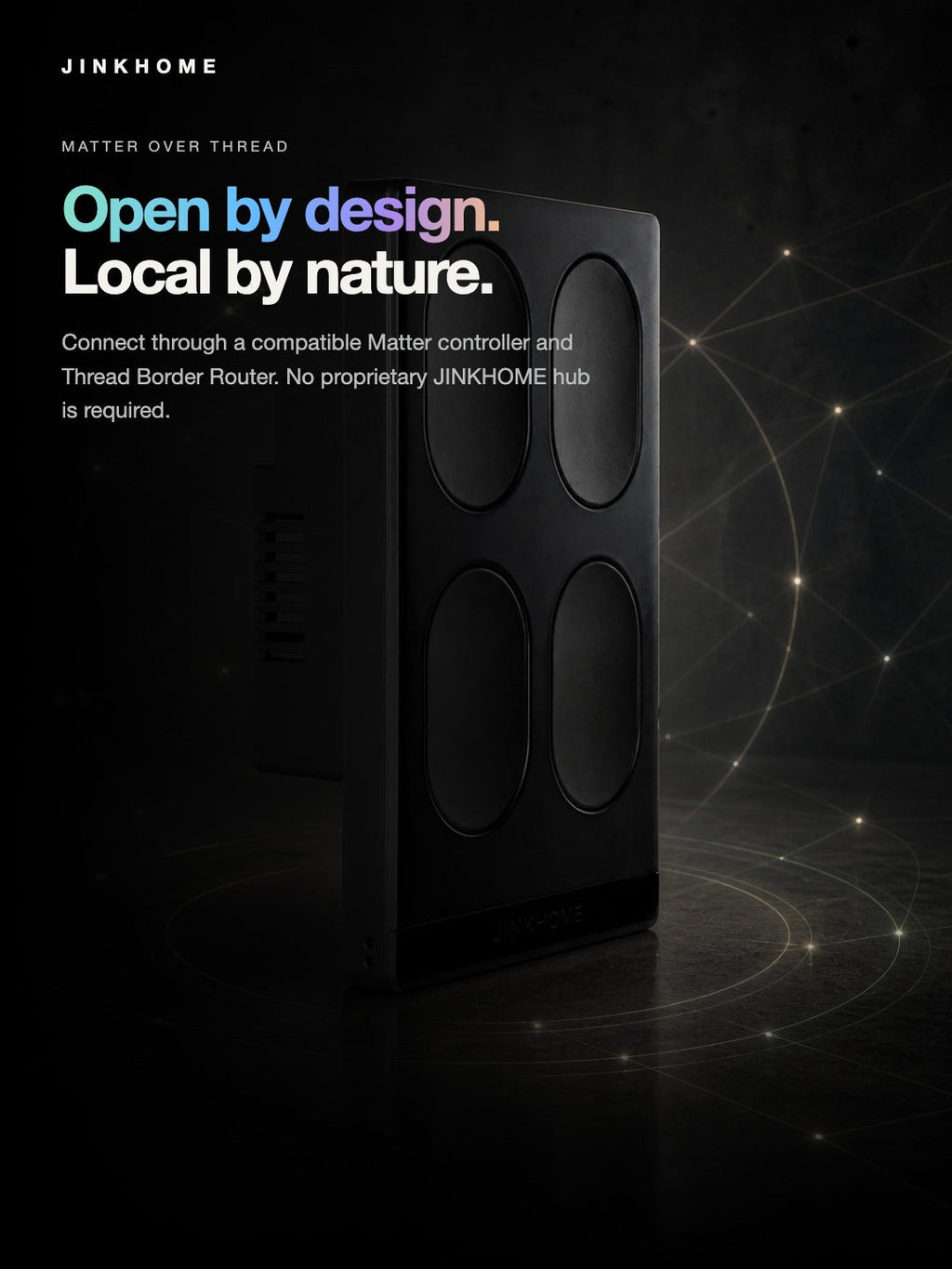

Matter over Thread
Matter is an IP-based smart-home standard designed to help compatible devices and ecosystems work together. JINK Switch Stealth connects over Thread and requires a compatible Matter controller and Thread Border Router; one device may provide both roles. No proprietary JINKHOME hub is required.
Examples of Matter-enabled platforms include Apple Home, Google Home, Amazon Alexa, and Samsung SmartThings. Available controls can vary by platform, controller and software version.
Key features

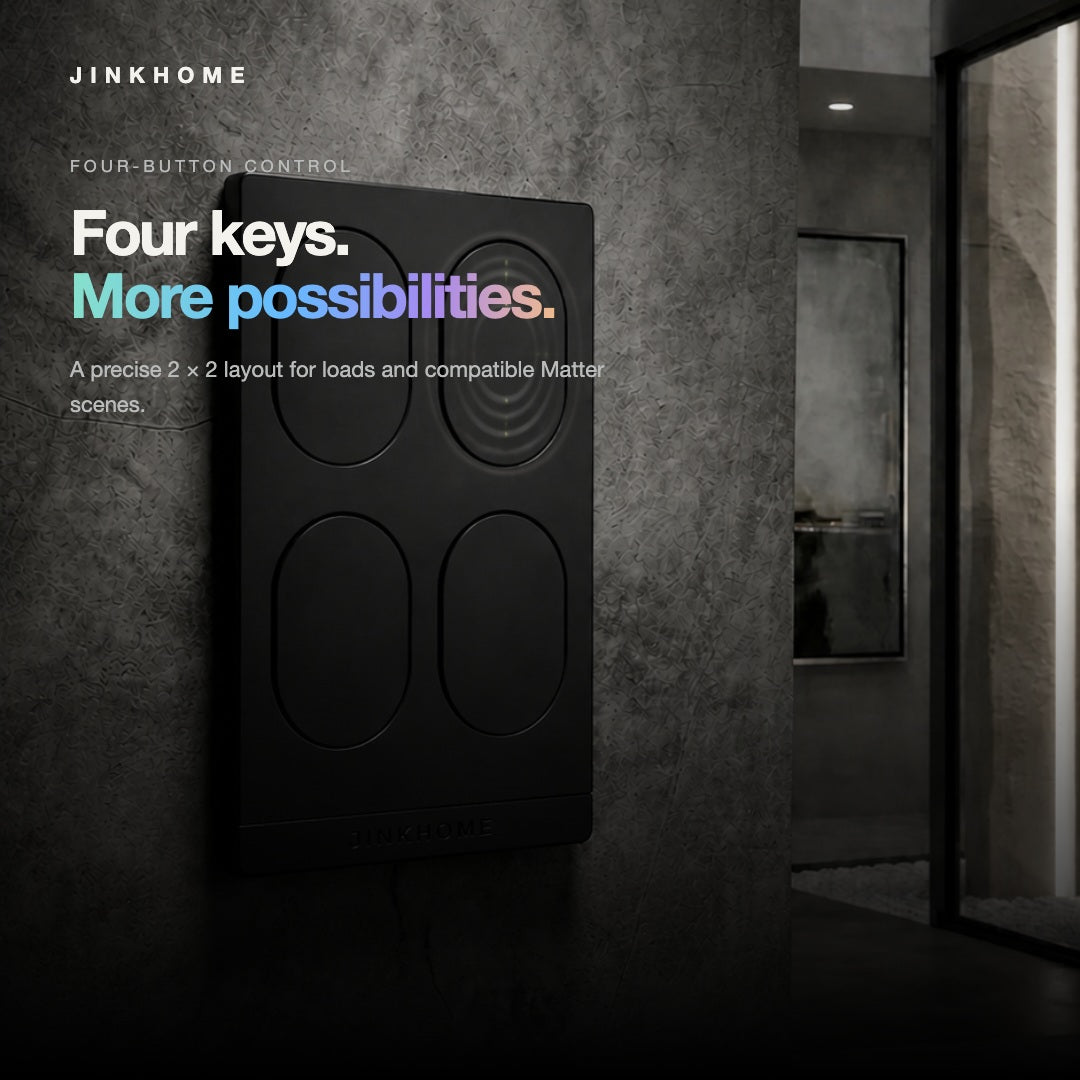

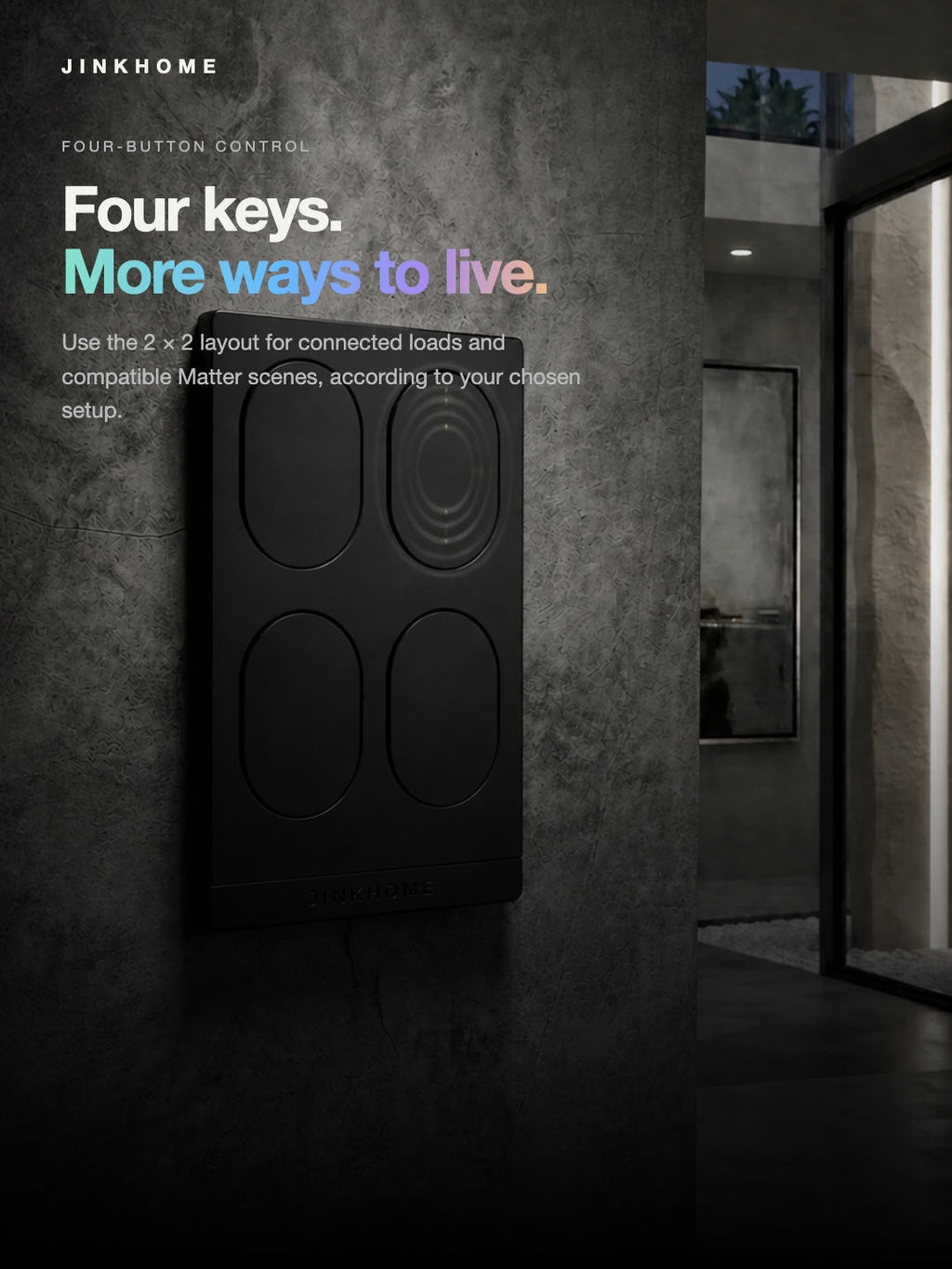

- Four physical keys in a 2 × 2 layout
- Matter over Thread connectivity with local home-network communication
- Button and relay decoupling for compatible scene configurations
- Up to 400 W per gang, subject to connected-load and installation conditions
- US-style vertical wall-switch format
- 12 colours and four material choices: Plastic, Glass, Wood and Metal

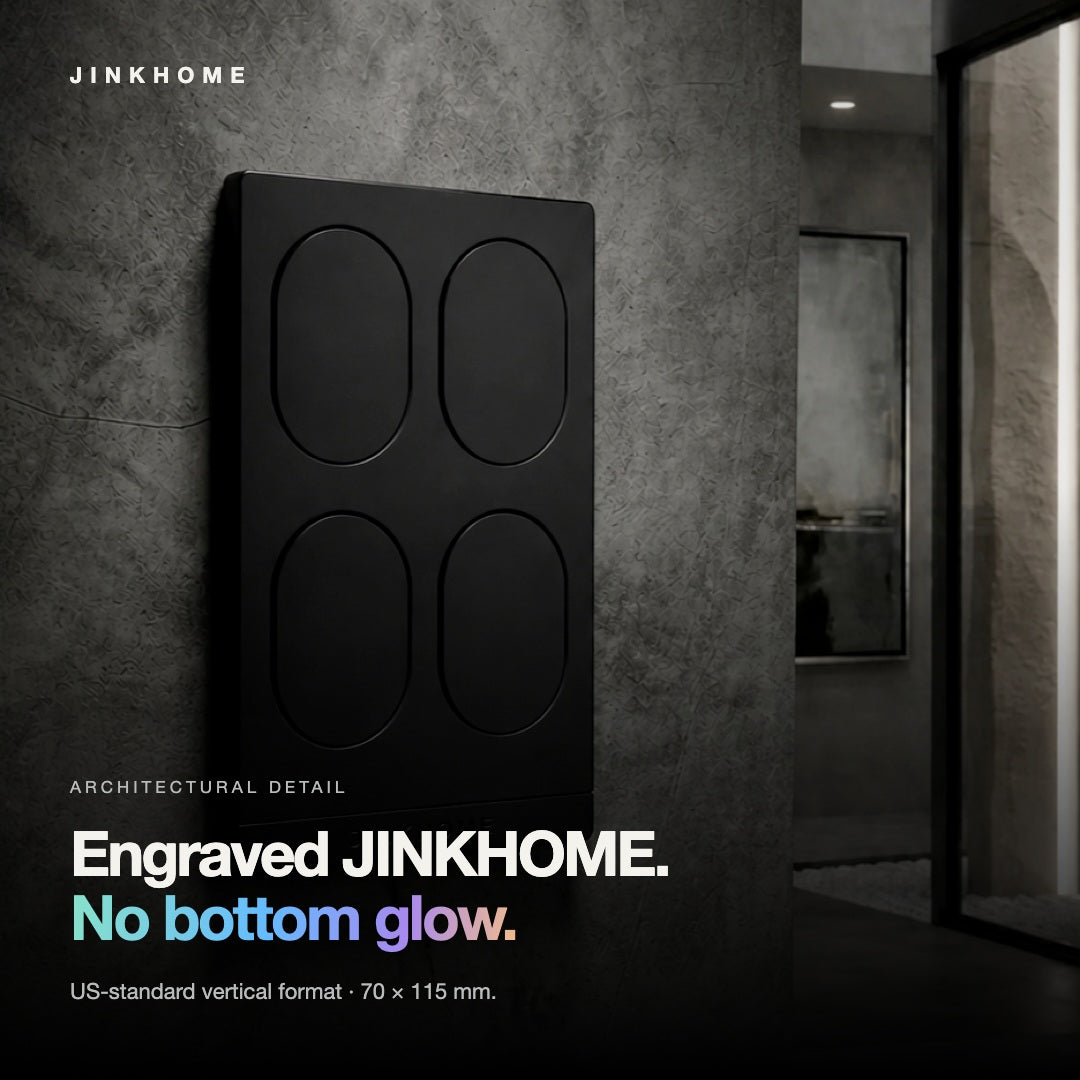

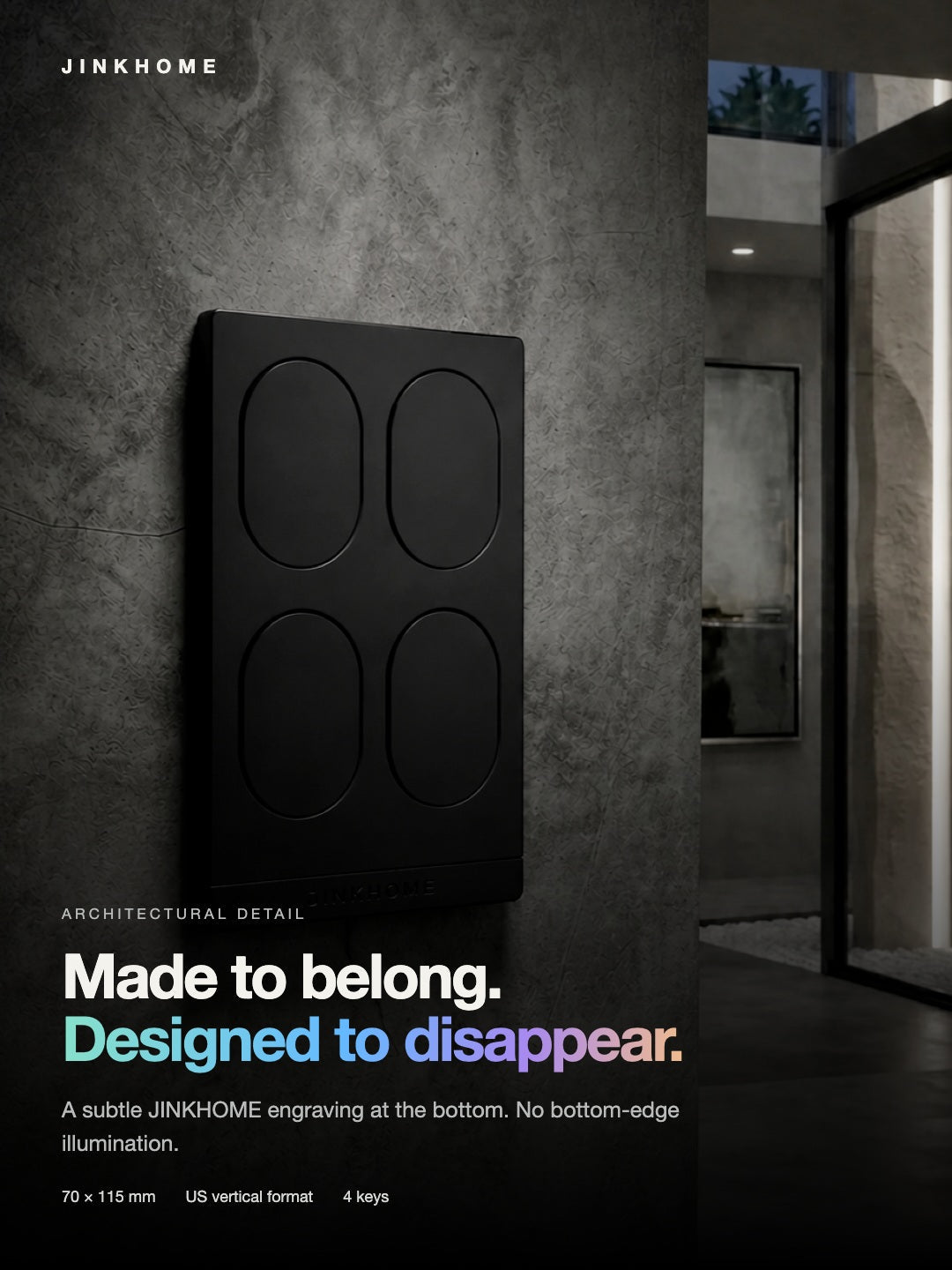

- Bottom JINKHOME engraving with no bottom-edge light
Specifications
| Configuration | Four buttons · 2 × 2 |
|---|---|
| Dimensions | 70 × 115 mm · approximately 36.8 mm overall depth |
| Input | 110–250 V AC · 50–60 Hz |
| Maximum load | ≤400 W per gang |
| Connectivity | Matter over Thread · Thread 1.4 |
| Operating environment | −10 °C to 40 °C · ≤90% RH, non-condensing |
| Ingress protection | IP20 · indoor general use |
| Mechanical life | More than 30,000 press operations |
| Variants | 12 colours × 4 materials · 48 four-button SKUs |
Installation
This is a mains-powered electrical product. Installation and servicing must be completed by a qualified or licensed electrician. Confirm the wall-box format and depth, supply, neutral and protective-earth requirements, connected-load suitability and terminal arrangement for the selected model before energising the circuit.
